0-10V 4 Channels Dimming Controller Hotel Room Lighting Control System Long Lifespan

China Shenzhen Okystar Technology Co., Ltd. certification
This is a fantastic sourcing platform, considerate service and good quality product.

—— Michael

On-time delivery. And support is good and fast.

—— Daniel weree

I'm Online Chat Now

0-10V 4 Channels Dimming Controller Hotel Room Lighting Control System Long Lifespan

0-10V 4 Channels Dimming Controller Hotel Room Lighting Control System Long Lifespan
0-10V 4 Channels Dimming Controller Hotel Room Lighting Control System Long Lifespan 0-10V 4 Channels Dimming Controller Hotel Room Lighting Control System Long Lifespan

Large Image :  0-10V 4 Channels Dimming Controller Hotel Room Lighting Control System Long Lifespan

Product Details:
Place of Origin: China
Brand Name: Okystar
Model Number: DIN-FLV4
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: carton package
Delivery Time: 3-7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: ≥1000 perday
Detailed Product Description
Temperature: 32° To 104°F (0° To 40°C) Humidity: 10% To 90% RH (non-condensing)
Voltage Control Range: 0 To 10 Volts DC Dimmer Channels: 4
Maximum Per Channel: 5 Amps @ 120 To 240 Volts AC, 50/60 Hz Size: 143*98*68mm
High Light:

10 volt dimmer switch

,

1 10 volt led dimmer

0-10V 4 Channels Dimming Controller Lighting Control System

Smart Home Solution

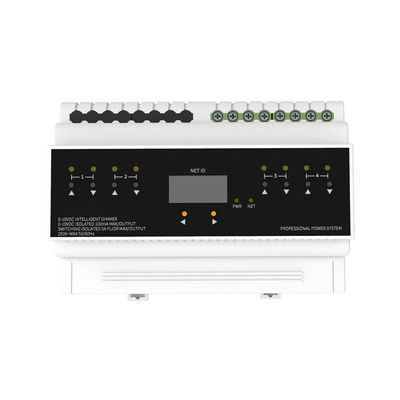

Description of 4 Channels of 0-10V Dimmer Module

It (The DIN-FLV)  is a 4-channel lighting control dimmer which designed to dim 0-10 Volt drivers and ballasts. One single
model supports both 120 and 220 to 240 Volt applications.The DIN-FLV4 can also be used for switching of non-dimmable lighting loads up to 5 amps[1] and 1/2 HP motors.

> 4 channels of 0-10 Volt dimmer controller
> Supports 120 and 220 to 240 Volt, 50/60 Hz applications
> Allows switching of lighting and exhaust fans
> Including an override input
> Communication: DC-NET
> Sets up via the front panel or through software
> Offers programmable functionality via DIN-CP1





Features of 0-10V Dimmer Module


Voltage Control Range



0 to 10 Volts DC



Maximum Sink Current

100mA per channel

Relay Rating

5 Amps maximum per channel



OUTPUT 1 – 4
(2) 4-pin 3.81mm detachable terminal
blocks comprising (4) isolated dimming
control outputs








0-10V 4 Channels Dimming Controller Hotel Room Lighting Control System Long Lifespan 0



Different packing at optional:
1. Retailing Packing:
Neutral Carton Package

2. Bulking Packing:
Carton Package-Can save packing cost
Anti-static bag--Can protect electronic components from potential electrostatic
hazards

3. Customized Packing
Can design and pack according to your requirement,such as colorful box,blister
packing,sealed packing with your company information, bar code,ect. ( Discuss
extral)





FAQ:



1. What is intelligent lighting control system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.



2. What is the advantage compare with the traditional lighting control?



Improve energy efficiency

Reduce maintenance cost

Easy operation and more convenient



3. What Okystar can supply for you?



Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
