0.12A / 0.06A Touch Screen Lighting Control Panel 17 - 24V 100g Net Weight

large.img.alt
large.img.alt
video play

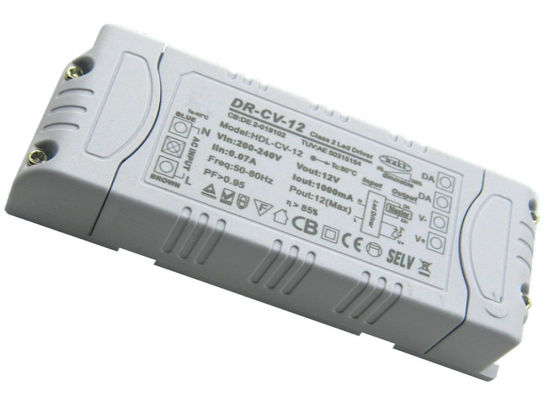

Large Image :  0.12A / 0.06A Touch Screen Lighting Control Panel 17 - 24V 100g Net Weight

Product Details:
Place of Origin: China
Brand Name: OKYSTAR
Certification: ce, rosh
Model Number: OKY-CV-12
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton package
Delivery Time: 3-7 days
Payment Terms: L/C, Western Union, T/T
Detailed Product Description
Input AC Current: 0.12A/0.06A Input Rated Current: 500mA
Input Full Load Efficiency: ≥85% Output Voltage Range: 17-24V
Net Weight: 100g Size: 107*41*22mm
High Light:

touch screen dimmer light switch

,

touch screen lighting control panel

Noise Free Dimmable Led Driver 12W PC Plastic Cover Constant Current​





Dimmer driver Quick Details:



   1. The input AC current of dimmer driver is 0.12A / 0.06A.

   2. It's Input Frequency range is from 50Hz to 60Hz.

   3. Dimmer driver's output voltage range is from 30V to 40V.

   4. The output rated power is 12 Watt.

   5. The Input Power factor is greater than 0.95.

   6. The Size of it is 107*41*22mm.



Product Features:



   1. Low per of the common-mode differential-mode noise.

   2. Full-ioslated,delivering up to 12W of power.

   3. Short circuit,over current and over voltage protection

   4. Margin component parameters, and long product life.

   5. 5 years quality warranty

   6. Power supply output voltage stability.



Specification:



Dimming type 12W Triac Dimmable/No Dimmable
Dimming Range 0% -100%,Flicker free, Noise free, Smooth dimming

Input Voltage range 90-130 &180-240VAC In-Rush Current 30A/186μs
Frequency range 50/60Hz Max.THD(Full Load) 10%
Power factor >0.95 Time To Light(At230V) <1S
Full load efficiency ≥85% Surge Protection 1KV

Output Output mode Constant Current / Constant Voltage
Output voltage range 17-24V
Rated power 20W
Output LF Voltage Ripple (<120Hz) ±5%
Output type single
Protect Short circuit protection Intermittent restart mode, after the exception can be automatically restored
Overcurrent protection Vout*150%
Overvoltage protection < 270VAC
Environtment Working Temp/Humidity -30-45℃,5-95%RH
Storage Temp/Humidity -40-70℃,5-95%RH
Temperature coefficient ±0.03%/℃(0-50℃)
Vibration 5-55Hz/2g,30 Mimutes
Safety& EMC Safety EN60598
Pressure I/P-O/P:3KVAC IP-FG:1.88KVAC O/P-FG:0.5KVAC
Insulation resistance I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
EMC Emission EN55022,EN55015 Class B
EMC Immanity EN61547, ENV5024, EN61000-4-2/3/4/6/8/11
Other Level of protection IP20, IP66, IP67
Shell Material Plastice



Conformance with regulations:



EN 55015
EN 61000-3-2-CLASSIC
EN 61000-3-3
EN 61000-4-2,3,4,5,6,8,11
EN 60598



Wiring diagram:



0.12A / 0.06A Touch Screen Lighting Control Panel 17 - 24V 100g Net Weight 0



Shell structure:



0.12A / 0.06A Touch Screen Lighting Control Panel 17 - 24V 100g Net Weight 1

0.12A / 0.06A Touch Screen Lighting Control Panel 17 - 24V 100g Net Weight 2



FAQ:



1. What is intelligent lighting control system?



A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.



2. What is the advantage compare with the traditional lighting control?



Improve energy efficiency

Reduce maintenance cost

Easy operation and more convenient



3. What Okystar can supply for you?



Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable. And we have technical team to support skype is okystar22 to you.
