|Input Range:||100V To 264V||Working Frequency:||47/63Hz|
|Output Voltage:||40V To 50V||Output Current:||0.45A|
|Output Power:||20W||Power Supply Size:||215*17.6*10.5mm|
Triac Dimmable Led Power Supply,
24W Dimmable Led Power Supply,
24W fluorescent light power supply

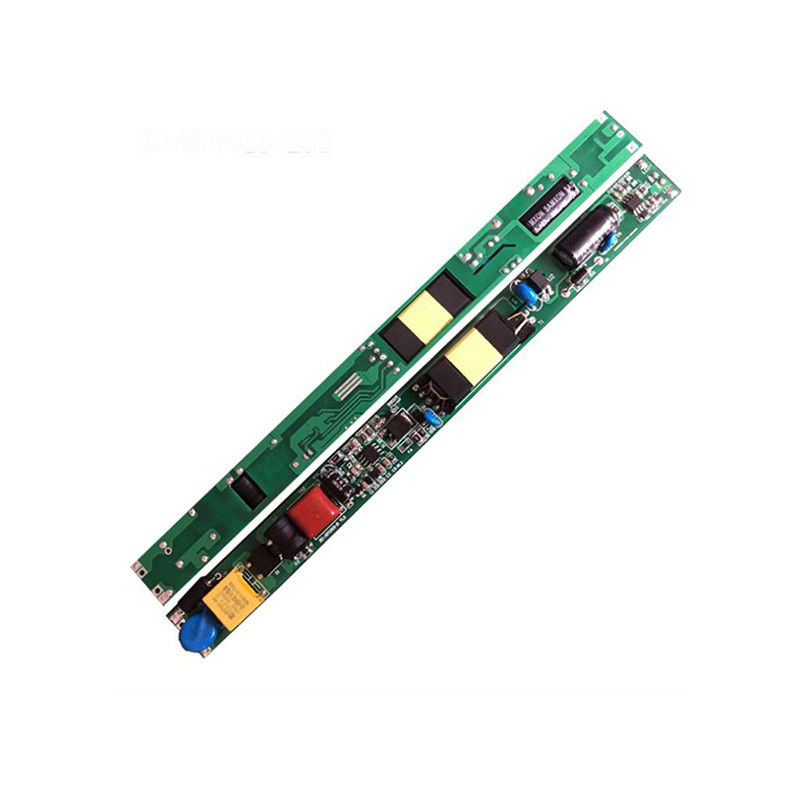

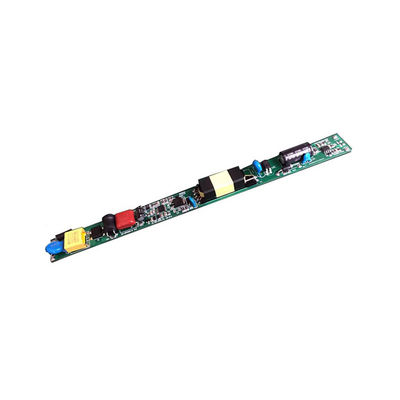

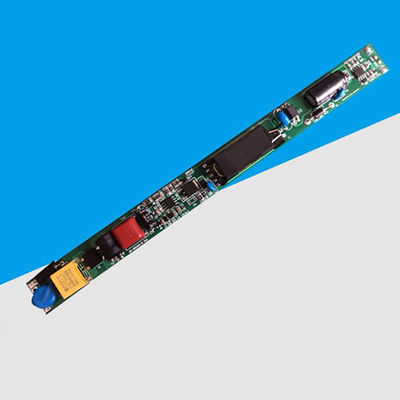

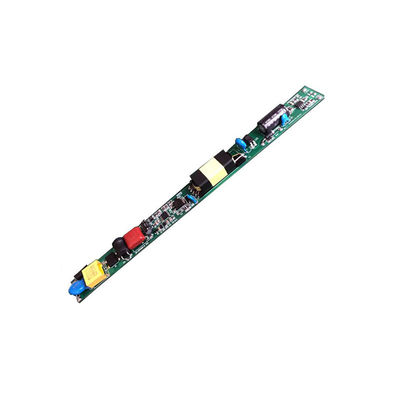

20W 24W Triac Dimmable Led Power Supply For Tube Fluorescent light
8W9W10W12W Isolated 0V To 10V Dimming High PF Wide Voltage Down-light Ceiling Panel Light Drive Power Supply
1. Input Range: 100V To 264V (in line with North America, U.S./Australia market)
2. Working Frequency: 47/63Hz
3. Output Voltage: 40V To 50V
4. Output Current: 0.45A (can be adjusted according to customers)
5. Output Power: 20W
6. Working Series Parallel: 14 series (3W/LEDS)
7. Work Efficiency: greater than 88%
8. Power Factor: greater than 0.9
9. Withstand Voltage: 3.75KV
10. Power Supply Size: 215*17.6*10.5mm
11. Warranty: 24months
1pc* 0V To 10V Light Led Driver Power Supply
