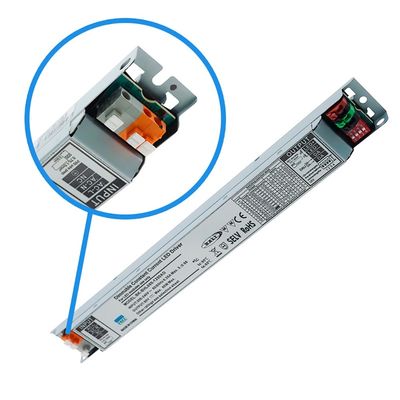

220V Constant Current Dimmable LED Driver Single Output Type For DALI Dimming

large.img.alt
small.img.alt small.img.alt

Large Image :  220V Constant Current Dimmable LED Driver Single Output Type For DALI Dimming

Product Details:
Place of Origin: China
Brand Name: OKYSTAR
Certification: ENEC,RCM,CCC,SAA,SUD-TUV
Model Number: DALI-IA
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: $8.88-19.98
Packaging Details: Carton package
Delivery Time: 3-7 days
Payment Terms: L/C, Western Union, T/T
Detailed Product Description
Input Voltage:: 200-240V Adjustable Current: 300 To 2000 MA
Output Power: 30 To 70 W Operating Temperature: -25 To 55℃
Relative Humidity: 5% To 95% Trun On Delay: Less Than 0.5S
Life Time: 50000 Hours Output Type: Single
Dimming Type: DALI Constant Current
High Light:

interior led light fixtures

,

led lamp driver

200V- 240V LED Driver For DALI Dimming For Lighting Control System



Description of DALI Driver Power Supply:



1.Input Voltage 200-240VAC, withstand 380VAC high voltage short-time shock. I
2. Conform to ERP requirement, stand-by consumption <0.5W; Turn-on delay time <0.5S.
3. Output current could adjusted by end user through DIP switch.
4. With SCP/OCP/OVP/OTP.
5. Achieve flicker free dimming and minimum brightness could close the driver.
6. Achieve dimming synchronization effect incondition of any combination of
lamps (closed or open).
7. Built in correction of the output current ± 1% accuracy.
8. High efficiency 89%, low THD < 10%.
9. DALI, 1-10V&10VPWM dimmable.
10. Passed certification: ENEC,RCM,CCC,SAA,
SUD-TUV.
11. Dali member.
12. 5 years warranty.



         The DALI LED Drivers are wildely applied in modern lighting system for a better and brighter future. Dimmable LED Driver Power Supply become a kind of trend in future lighting industry. Okystar can offer you with the best products with reasonable prices.

please contact WhatsApp: 86 17898449880



Environmental Specifications :



Vibration 5-55Hz/2g,30
Thermal Dissipation Nature
MimutesStorage Temperature -40~+70°C
Operating Temperature -25~+55°C
Relative Humidity 5~95%
Isolation Voltage In/Out 3000VAC
Life Time 50000Hours,at TC max



Product Features:



Selectable constant current output.(Custom on request)Full-ioslated,delivering up to 20W of power.

Short circuit,over current and over voltage protection. Up to 89% efficient.

Fireproof environmental protection PC plastic cover 2 years quality warranty



Specification:



Model No. DALI-IA
Input Voltage Range 100v~240v
Storage Tempertature -40 to 70 ℃
Relative Humidity 5% to 95%
Output Current  0.30- 2.00 Amps
Out power 30W - 70W
Efficiency 89%
Power Factor 0.95
Life Time 50000 Hours
size 245*30*21mm
warranty ears



Application Of DALI LED Driver



220V Constant Current Dimmable LED Driver Single Output Type For DALI Dimming 0



220V Constant Current Dimmable LED Driver Single Output Type For DALI Dimming 1



Wiring diagram of DALI LED Driver



220V Constant Current Dimmable LED Driver Single Output Type For DALI Dimming 2







FAQ:

  • What is intelligent lighting control system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.



  • What is the advantage compare with the traditional lighting control?



  • Improve energy efficiency
  • Reduce maintenance cost
  • Easy operation and more convenient



  • What Okystar can supply for you?



Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable. And we have technical team to support skype is okystar22 to you.
