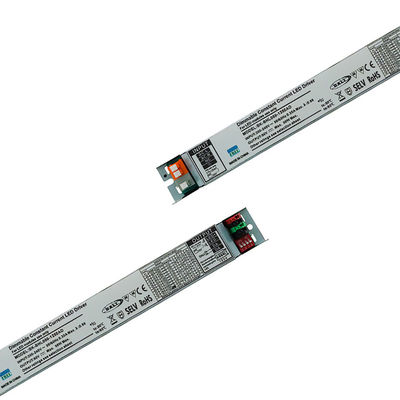

240V 300mA Adjustable LED Driver Tri Proof For Indoor LED Lighting

240V 300mA Adjustable LED Driver Tri Proof For Indoor LED Lighting
240V 300mA Adjustable LED Driver Tri Proof For Indoor LED Lighting
video play

Large Image :  240V 300mA Adjustable LED Driver Tri Proof For Indoor LED Lighting

Product Details:
Place of Origin: China
Brand Name: OKYSTAR
Certification: CE
Model Number: BHL-BD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10-19usd/pc
Packaging Details: Carton package
Delivery Time: 3-5 days
Payment Terms: L/C, Western Union, T/T
Supply Ability: 100000PCS/WEEKS
Detailed Product Description
Input Voltage: 200-240V Output Voltage: 3-42V
Output Current: 300mA-2000mA Warranty: 5years
Output Power: 10-60w Application: Led Lighting Products
Product Name: Led Driver For Dimming Light Name: LED Dimmable Driver
High Light:

300mA Adjustable LED Driver

,

240V PWM Adjustable LED Driver

,

Dali 2 Adjustable LED Driver

240V 300mA Adjustable LED Driver Tri Proof For Indoor LED Lighting



Flicker Free Led Driver 200-240V Tri-Proof Led Strip Light Driver DALI2 Dimming



SKU Specification Warranty
Output Power Input Voltage Output Voltage Output Current transfer efficiency PF Product
Size
(MM)
CJL030AM 10-30W 200-240V 6-42V(40) 300-750MA 86-88% >0.9 245*30*21 5years
CJL040AM 30-40W 200-240V 6-42V(40) 600-1050MA 86-88% >0.9 285*30*21 5years
CJL050AM 40-50W 200-240V 6-42V(40) 800-1250MA 86-88% >0.9 285*30*21 5years
CJL060AM 50-60W 200-240V 6-42V(40) 1200-1650MA 86-88% >0.9 355*30*21 5years
CJL080AM 60-80W 200-240V 6-42V(40) 1550-2000MA 86-88% >0.9 355*30*21 5years



Description For LED Drive


  •  120-277VAC input
  •  Built in active PFC function,high PF,low THD
  •  Stanby power consumption <0.5W to turn off dimmable port.
  •  Constant current mode output with mulitiple levels selectable
  •  by DIP.switch
  •  Supporting multi-power supplys synchronous dimming
  •  connected in parallel
  •  Cooling by free air convecation
  •  Suitable for indoor LED lighting applications
  •  Built in Dali2 PWM dimming function
  •  Passed certifiocation:UL ,CLASS P
  •  5 years warranty




Features



  •  120-277VAC input
  •  Built in active PFC function,high PF,low THD
  •  Supporting multi-power supplys synchronous dimming
  •  connected in parallel
  •  Cooling by free air convecation
  •  Suitable for indoor LED lighting applications
  •  Built in Dali2 PWM dimming function





Parameters



  •  Input Voltage:120-277VAC
  •  Harmonic Current:<10%
  •  Working Temperature:-20~60℃
  •  Environmental Protection:RoHS
  •  Dimmable Mode:DALI2
  •  Electromagnetic Emission:EN50015 Gb17743 En61000-3-3 / EN61000-3-2(class C)
  •  Safety standard:EN61347-1/2-13 / GB19510-1/2-14 EN62384 / EN62386-101 102 207
  •  Power Factor:>0.95
  •  Protection:SCP/OCP/OVP/OTP
  •  Storage temperature:-40~80℃
  •  Life span:50000H
  •  Hi-pot:I/P-O/P:3750VAC IP-FG :1500VAC
  •  Electromagnetic Interference:EN61547 GB17625 EN61000-4-2,3,4,5,6,8,11




Q1: Are your manufacturer and do you have experience?

A: We are manufacturer with more than 15 years experience.
Q2: What certificates, do you have for your products?
A: We have CE,TUV,LVDE,Rohs certificates for our products.
Q3: Can we add our own Logo on products?
A: Yes,you can add your logo on them.
Q4: What is the warranty?
A: At least 5 years warranty.
Q5: Can you do special packaging for us?
A: Yes,we can customize packing.
Q6: What is your Minimum order quantity?
A: Nomally 500pcs,small quantity is also available.
Q7: Can you do sample order?
A: Yes, we can.

240V 300mA Adjustable LED Driver Tri Proof For Indoor LED Lighting 0










Our Services:

1. 3-5 working days for samples; 7-10 working days for bulk orders normally.
2. Powerful R&D team, can provide good designs and lighting solutions.
3. Quick and high efficiency after-sale team, your complaints will be solved with 24 hours by professional team.
4. We supply OEM and ODM service, and only focus on high quality products.
5. Payment terms : L/C, Western Union, T/T.

FAQ:

1. What is intelligent lighting control system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.

2. What is the advantage compare with the traditional lighting control?

Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient

3. What Okystar can supply for you?

Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable. And we have technical team to support skype is okystar22 to you.
