|Dimmer Channels:||4||Maximum Per Channel:||5 Amps @ 120 To 240 Volts AC, 50/60 Hz|
|OUTPUT 1 – 4:||(2) 4-pin 3.81mm Detachable Terminal Blocks Comprising (4) Isolated Dimming Control Outputs||Voltage Control Range:||0 To 10 Volts DC|
|Maximum Wire Size:||12 AWG (2.5 Mm²)||NET:||(2) 4-pin 3.81mm Detachable Terminal Blocks, Paralleled; DC-NET Slave Port|
1 10 volt led dimmer,
0 to 10 dimming
0-10V Dimmer Module With 4 Isolated Channels Applied In lighting Automation system
The 0-10V Dimmer Module is an international standard Dimming Module widely developed all around the world. It has 4 isolated channel and the maximum load Rating is 5 Amps per channel, which can provide you with unique using experience.
If you have any problems, please contact: Whats APP: (+86) 178 9844 9880 Skype: okystar12
Description of 0-10v Dimmer in Smart Lighitng Control System

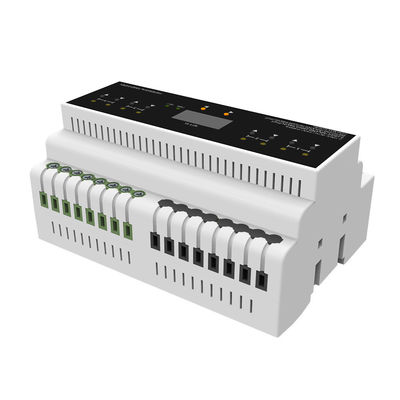

The DIN-FLV4 is a 4-channel lighting control module designed to dim 0-10 Volt drivers and ballasts. A single model supports both 120 and 220 to 240 Volt applications. The DIN-FLV4 may also be used for switching of non-dimmable lighting loads up to 5 amps and 1/2 HP motors.
|OUTPUT 1 – 4||(2) 4-pin 3.81mm detachable terminal blocks comprising (4) isolated dimming control outputs|
|Voltage Control Range||0 to 10 Volts DC|
|Maximum Sink Current||100mA per channel|
|CONNECTOR||(4) sets of (2) captive screw terminals; Isolated Class 1 SPST relay switch circuits 1 – 4|
|Relay Rating||5 Amps maximum per channel|
|Maximum Wire Size:||12 AWG (2.5 mm²)|
|NET||(2) 4-pin 3.81mm detachable terminal blocks, paralleled; DC-NET slave port|
(2) 2-pin 3.81mm detachable terminal blocks, paralleled;
Sensing input for external low-voltage contact closure;
Activates override mode when a closure is present; Minimum Closure Rating: 10mA (per module) at 24 Volts
An override input is provided to allow an external contact closure to momentarily override the control system program and set each channel output to its override preset level. Levels can be adjusted and saved locally from the front panel or remotely via software.
DIN Rail Installation
The DIN-FLV4 is designed to snap onto a standard DIN rail for installation in a wall mount enclosure. Wiring connections are made using screw terminals positioned along the top and bottom, clearly accessible from the front for easy installation and servicing. All setup controls and indicators are positioned on the center front panel. When installed in an enclosure utilizing 45 mm cutouts, the DIN-FLV4’s front panel stays accessible while the connections are concealed.
