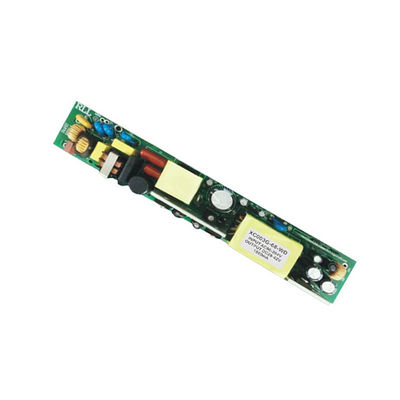

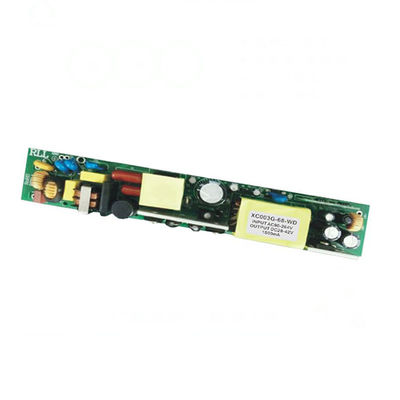

68W Bipolar Non Flicker Free Dimmable LED Driver Waterproof Power Supply

68W Bipolar Non Flicker Free Dimmable LED Driver Waterproof Power Supply
68W Bipolar Non Flicker Free Dimmable LED Driver Waterproof Power Supply
video play

Large Image :  68W Bipolar Non Flicker Free Dimmable LED Driver Waterproof Power Supply

Product Details:
Place of Origin: China
Brand Name: OKYSTAR
Certification: CE
Model Number: 20210520-2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1-14usd/pc
Packaging Details: Carton package
Delivery Time: 3-5 days
Payment Terms: L/C, Western Union, T/T, Western Union, MoneyGram
Supply Ability: 100000PCS/WEEKS
Detailed Product Description
Input Range: 90V To 265V Output Voltage: 28V To 42V
Working String And Parallel: 12 Strings (3W/LEDS) Withstand Voltage: 3.75KV
Color: Green Package: Standrad Packing
High Light:

Non Flicker Free Dimmable LED Driver

,

Bipolar Dimmable LED Driver

,

Bipolar Waterproof Power Supply

68W Bipolar Non Flicker Free Dimmable LED Driver Waterproof Power Supply



68W Bipolar Non-Flicker-Free 0-10V Dimming Line Street Lamp Waterproof Led Driver Power Supply



Feature:

Input range 90-265V
Working frequency 47/63Hz
Output voltage 28-42V
Output current 1.5A
Output power 68W
Working string and parallel 12 strings (3W/LEDS)
Work efficiency More than 85%
Power factor Greater than 0.9
Withstand voltage 3.75KV
Power supply size

277*36*20.5mm



Package Included:
1pc* 0-10V Light Led Driver Power Supply

















68W Bipolar Non Flicker Free Dimmable LED Driver Waterproof Power Supply 0

68W Bipolar Non Flicker Free Dimmable LED Driver Waterproof Power Supply 1











Basic Knowledge of 0-10v

1–10 V is one of the first and simplest electronic lighting control signaling systems, used as an early fluorescent dimming system.[1] Simply put, the control signal is a DC voltage that varies between zero and ten volts. There are two recognized standards current sourcing, and current sinking.



Current Sourcing[edit]

Typically used in commercial and theatrical dimming, the controller sends volts to the device. The controlled lighting should scale its output so that at 10 V, the controlled light should be at 100% of its potential output, and at 0 V it should at 0% output (i.e., off). Dimming devices may be designed to respond in various patterns to the intermediate voltages, giving output curves that are linear for: voltage output, actual light output, power output, or perceived light output.

Receivers have a nominal input impedance of 100±20 kΩ (i.e., maximum 1.0±0.2 mW at 10 V)


0-10V dimmer

In production lighting this system was replaced by analog multiplexed systems such as D54 and AMX192, which themselves have been almost completely replaced by DMX512. For dimmable fluorescent lamps (where it operates instead at 1–10 V, where 1 V is minimum and 0 V is off), the system is being replaced by DSI, which itself is in the process of being replaced by DALI. However, 0–10 V control again gained popularity in the 2010's. It is common in LED flat panel fixtures.
