6A Din Rail Hotel Room 4-Channel Trailing Edge Dimmer Controller

video play

Large Image :  6A Din Rail Hotel Room 4-Channel Trailing Edge Dimmer Controller

Product Details:
Place of Origin: China
Brand Name: OKYSTAR
Certification: CE
Model Number: DIN-CDM4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton package
Delivery Time: 3-5 days
Payment Terms: Western Union, T/T, L/C
Detailed Product Description
Brand Name: Okystar Product Name: Trailing Edge Dimmer Controller
Customization: Yes Line Power: 120 To 240 Volts AC, 50/60 Hz
Weight: 450 G Dimensions: 143mm(Length)*98mm(Width)*68mm*(Height)
High Light:

led light control module


interior lamp control module

6A Din Rail Hotel Room 4-Channel Trailing Edge Dimmer Controller

Trailing Edge Dimmer Controller Description:


NET (2) 4-pin 3.81mm detachable terminal blocks, paralleled
OVERRIDE (1) 2-pin 3.81mm detachable terminal blocks, paralleled;Sensing input for external low-voltage contact closure;Activates override mode when a closure is present
Maximum Per Channel 1.5 Amps @ 120 to 240 Volts AC, 50/60 Hz
Load Types Incandescent loads or LEDLamps



Trailing Edge Dimmer Controller Features:


It is compatible with RS-485 Bus communication, supports multiple controlling protocols such as DMX, ModBus RTU, ModBus ASCII, and third-party protocols, supporting AMX, Crestron, C4 and all third-party control systems.
Each channel independent dimming operation controlling ; support dimming fade-in fade-out effect, fade-out time is adjustable from 0 seconds ~ 255 seconds; it supports each channel dimming curve configuration ,user-defined editing and the tone light curve saving; loop power-off storage, recovery, scene saving,and call functions, etc
Emergency manual switch helps you test easily. Operating state indicator lamps help you check operating state clearly.
DC-NET ID number digital display is on the front panel of the device . the ID number can be set via the panel keys.
Built-in OCP (over current protection),when the actual load power of channel exceeds the rated power, the module automatically closes the channel

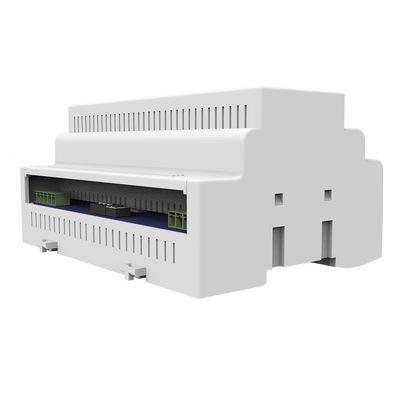

Trailing Edge Dimmer Controller Picture:

6A Din Rail Hotel Room 4-Channel Trailing Edge Dimmer Controller 0





1.Goods can be delivered in about 24 hours at the earliest
2.The company has its own factory that can provide customized services to customers.

3.The company has more than 10 years of technical advantages and experience to provide technical support to customers.

4.Professional sales engineer team, providing 7*24 hours of uninterrupted service






1. What is intelligent lighting control system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.


2. What is the advantage compare with the traditional lighting control?


Improve energy efficiency

Reduce maintenance cost

Easy operation and more convenient


3. What Okystar can supply for you?


Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
