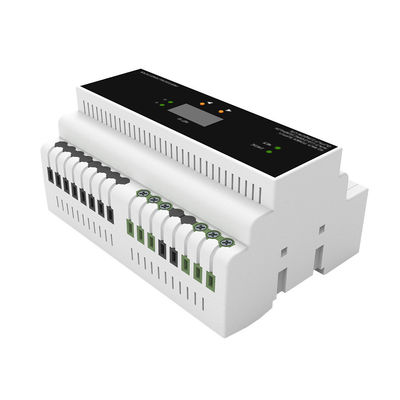

DC-NET Power Supply Module 60 Watt Applied In DALI Lighting Control System

DC-NET Power Supply Module 60 Watt Applied In DALI Lighting Control System
DC-NET Power Supply Module 60 Watt Applied In DALI Lighting Control System
video play

Large Image :  DC-NET Power Supply Module 60 Watt Applied In DALI Lighting Control System

Product Details:
Place of Origin: China
Brand Name: OKYSTAR
Certification: CE
Model Number: DIN-DALI
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $40-60/pcs
Packaging Details: 1pcs/box, withing 14kg for DIN Rail DALI Lighting Control System
Delivery Time: 2-7 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 2000pcs/month
Detailed Product Description
Product Name: DIN Rail 60W 24V DC Power Supply Module Supply Input: 24VDC
DC-NET Power: 60 Watts Feature: Smart Lighting Control
Warranty: 1 Years Application: Home/building Automation Lighting Control System
High Light:

lighting control devices

,

commercial lighting control systems

60 Watt DC-NET Power Supply Module Applied in DALI Lighting Control System






Smart Lighting Control System Solution Advantages





1. Cost and time advantages in planning, installation, commissioning and reprogramming
2. Improves comfort.
3. High flexibility, extense function at any time

4. DIN rail components and surface mounted devices

5. Input and output combinated various devices.
6. All loads in the room (lights, blinds, heating, etc.) can be controlled using a central device

DC-NET Power Supply Module 60 Watt Applied In DALI Lighting Control System 0



DC-NET Power Supply Module Specifications



Output Rating
60 Watts (2.5 Amps) at 24 Volts DC, regulated, limited power source

Line Power/Mains

200 VA (2 Amps max.) @ 110-250 Volts AC, 50/60 Hz

Power Consumption

70 Watts at full rated output

100-277VAC 50/60Hz

(2) Set of (3) captive screw terminals; Line power input and ground

FUSE

(1) AC input fuse, T3.15AH;4x8 mm, 250 Volts, 3.15 Amps, time-lag, ceramic cartridge

NET

(2) 4-pin 3.81 mm detachable terminal blocks, paralleled;DC-NET power output ports with data pass-through



Ripple/Noise
<1%
Efficiency
85%

Temperature

32° to 104° F (0° to 40° C)
Humidity
10% to 90% RH (non- condensing)



DC-NET Power Supply Module Application

DC-NET Power Supply Module 60 Watt Applied In DALI Lighting Control System 1





Automation Lighting Control System Applied in: stadium, school, hospital, airport, metro, church, office, commercial building, parking lot/car park/parking area, outdoor spaces, foyer, lobby, elevator hall, public walkway, bathroom, underground garage, meeting room, villa, home lighting, plazas, shopping malls, public building, industrial plants and factories, etc





DC-NET Power Supply Module Features

The DIN-PWS60 is a 60 Watt DC-NET Power Supply module. Two DC-NET power ports are provided to supply power for the whole lighting control system. It designed to snap onto a standard DIN rail for easy installation in a wall-mount enclosure.
The DIN-PWS60 communicates with a DIN-CP1 Automation Processor, or other Third-Party control systems, via the DC-NET control network A pair of DC-NET ports on the DIN-PWS60 allows for easy daisy-chaining of several DIN Rail Series automation control modules.




DC-NET Power Supply Module Installation


The DIN-PWS60 is designed to snap onto a standard DIN rail for installation in a wall mount enclosure. Wiring connections are made using screw terminals positioned along the top and bottom, clearly accessible from the front for easy installation and servicing. All setup controls and indicators are positioned on the center front panel. When installed in an enclosure utilizing 45 mm cutouts, the DIN-PWS60's front panel stays accessible while the connections are concealed.





DC-NET Power Supply Module 60 Watt Applied In DALI Lighting Control System 2



Enclosure
Light gray polycarbonate housing with polycarbonate label overlay,UL 94 V-0 rated, 35 mm DIN EN 60715 rail mount, DIN 43880 form factor for enclosures with 45mm front panel cutout, occupies 8 DIN module spaces(143 mm).



DC-NET Power Supply Module Exhibition


DC-NET Power Supply Module 60 Watt Applied In DALI Lighting Control System 3

FAQ
1. What is intelligent lightincontrol
g system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.

2. What is the advantage compare with the traditional lighting control?

Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient


3. What Okystar can supply for you?

Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
