Flicker Free Dali Lighting Control Module Dimmable Led Driver 60 Watt Constant Current

Flicker Free Dali Lighting Control Module Dimmable Led Driver 60 Watt Constant Current
Flicker Free Dali Lighting Control Module Dimmable Led Driver 60 Watt Constant Current
video play

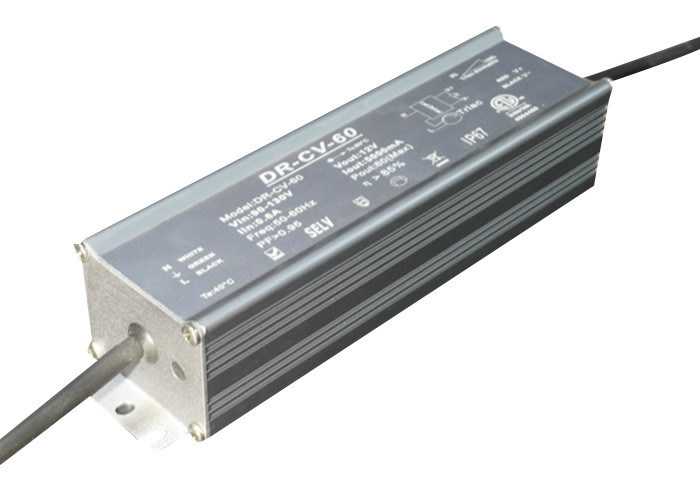

Large Image :  Flicker Free Dali Lighting Control Module Dimmable Led Driver 60 Watt Constant Current

Product Details:
Place of Origin: China
Brand Name: OKYSTAR
Certification: ce, rosh
Model Number: OKY-CV-W60
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton package
Delivery Time: 3-7 days
Payment Terms: L/C, Western Union, T/T
Detailed Product Description
Input Voltage: 110V / 220V Output Current: 2500MA
Efficiency: 86% Output Voltage: 24V
PF Value: 0.95 Size: 185*50*40mm
High Light:

automatic headlight control module

,

led lighting control panel

Waterproof Flicker free Dimmable Led Driver 60 Watt Constant Current





Dimmable Led Driver Quick Details:



   1. The input voltage is 110V and 220V.

   2. It's output current is 2500MA.

   3. The efficiency can up to 86%.

   4. Dimmable led driver's output rated power is 60 Watt.

   5. The output voltage is from 24V.

   6. The Size of it is 185*50*40mm.



Product Features:



   1. Devices using the brand components, quality and stability.

   2. Full-ioslated,delivering up to 60W of power.

   3. Overcurrent protection:Hiccup mode, after the removal of abnormal flow can be automatically restored

   4. Short circuit protection:Intermittent restart mode, after the exception can be automatically restored.

   5. Overcurrent protection:Hiccup mode, after the removal of abnormal flow can be automatically restored.

   6. 5 years quality warranty.



Specification:



Dimming type Waterproof 60W Dimmable Led Driver
Dimming Range 0% -100%,Flicker free, Noise free, Smooth dimming

Input Voltage range 90-130 &180-240VAC In-Rush Current 30A/186μs
Frequency range 50/60Hz Max.THD(Full Load) 10%
Power factor >0.95 Time To Light(At230V) <1S
Full load efficiency ≥85% Surge Protection 1KV

Output Output mode Constant Current / Constant Voltage
Output voltage range 24V
Rated power 60W
Output LF Voltage Ripple (<120Hz) ±5%
Output type single
Protect Short circuit protection Intermittent restart mode, after the exception can be automatically restored
Overcurrent protection Vout*150%
Overvoltage protection < 270VAC
Environtment Working Temp/Humidity -30-45℃,5-95%RH
Storage Temp/Humidity -40-70℃,5-95%RH
Temperature coefficient ±0.03%/℃(0-50℃)
Vibration 5-55Hz/2g,30 Mimutes
Safety& EMC Safety EN60598
Pressure I/P-O/P:3KVAC IP-FG:1.88KVAC O/P-FG:0.5KVAC
Insulation resistance I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
EMC Emission EN55022,EN55015 Class B
EMC Immanity EN61547, ENV5024, EN61000-4-2/3/4/6/8/11
Other Level of protection IP20, IP66, IP67
Shell Material Plastice



Conformance with regulations:



EN 55015
EN 61000-3-2-CLASSIC
EN 61000-3-3
EN 61000-4-2,3,4,5,6,8,11
EN 60598



Wiring diagram:



Flicker Free Dali Lighting Control Module Dimmable Led Driver 60 Watt Constant Current 0



Shell structure:



Flicker Free Dali Lighting Control Module Dimmable Led Driver 60 Watt Constant Current 1

Flicker Free Dali Lighting Control Module Dimmable Led Driver 60 Watt Constant Current 2



FAQ:



1. What is intelligent lighting control system?



A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.



2. What is the advantage compare with the traditional lighting control?



Improve energy efficiency

Reduce maintenance cost

Easy operation and more convenient



3. What Okystar can supply for you?



Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable. And we have technical team to support skype is okystar22 to you.
