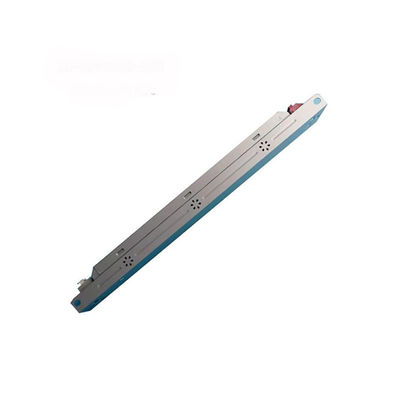

High P Line Tri Proof Dimmable LED Driver Iron Shell Driving Power Supply

High P Line Tri Proof Dimmable LED Driver Iron Shell Driving Power Supply
High P Line Tri Proof Dimmable LED Driver Iron Shell Driving Power Supply
video play

Large Image :  High P Line Tri Proof Dimmable LED Driver Iron Shell Driving Power Supply

Product Details:
Place of Origin: China
Brand Name: OKYSTAR
Certification: CE
Model Number: 20210524-9
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1-5.58usd/pc
Packaging Details: Carton package
Delivery Time: 3-5 days
Payment Terms: L/C, Western Union, T/T, Western Union, MoneyGram
Supply Ability: 100000PCS/WEEKS
Detailed Product Description
Input Range: 100-264V Working Frequency: 47/63Hz
Output Voltage: 50-80V Output Current: 0.65A
Output Power: 60W Size: 245*30*20mm
Warranty: 24Months Application: Dimming
High Light:

High P Line Dimmable LED Driver

,

60W Dimmable LED Driver

,

Iron Shell Driving Power Supply

High P Line Tri Proof Dimmable LED Driver Iron Shell Driving Power Supply



40-60W 0-10V Dimming High P Line Tri-Proof Panel Light Led Iron Shell Driving Power Supply



Description:



Input Range: 100-264V (in line with North America, U.S./Australia market)
Working Frequency: 47/63Hz
Output Voltage: 50-80V
Output Current: 0.65A (can be adjusted according to customers)
Output Power: 60W
Working String And Parallel: 24 strings (3W/LEDS)
Work Efficiency greater than 88%
Power Factor greater than 0.9
Power Supply Size: 245*30*20mm



Specification:


1. High quality intelligent constant current
2. Overvoltage protection, overload protection,overheat protection, short circuit protection
3. No flicker
4. Life expectancy 10,000 hours



Package Included:


1pc* 0V To 10V Light Led Driver Power Supply

0-10V is an analog lighting control protocol. Basically, a 0-10V control applies a voltage between 0 and 10 volts DC to produce a varying intensity level. ... A lighting console provides a separate 0-10V output for each dimming channel that connects to the input to dimmer modules located in a remote panel.
110V. It works in a similar fashion to 0-10v dimming, but the voltage is 'sinked' by the driver and will only go as low as 10% before the power to the circuit needs to be physically switched off. This method provides a very smooth dimming curve which is especially useful for colour changing LEDs.
0-10V and 1-10V are two different standards: ... The main difference between 0-10V and 1-10V is the direction of the current between dimmer and driver. 0-10V is a current source system, which means that the dimmer provides the power for the 0-10V signals – a mains connection to the dimmer is necessary.




High P Line Tri Proof Dimmable LED Driver Iron Shell Driving Power Supply 0

High P Line Tri Proof Dimmable LED Driver Iron Shell Driving Power Supply 1
