|Working Voltage:||24VDC±10%||Max Power Consumption:||1.6w|
|Static Power Consumption:||0.5W||Input Key:||8 Keys|
|External Size (length×width×height):||86mm×86mm×42mm;||Installation Mode:||Standard 86 Bottom Box Installation|
|Net Weight:||126g/PCS;||Bus Interface:||1× Bus|
|Working Temperature/humidity:||0 -- 45℃/20% -- 93%RH;||Storage Temperature/humidity:||-40℃ -- 55℃/10% -- 93%RH;|
touch switch panel,
smart control panel

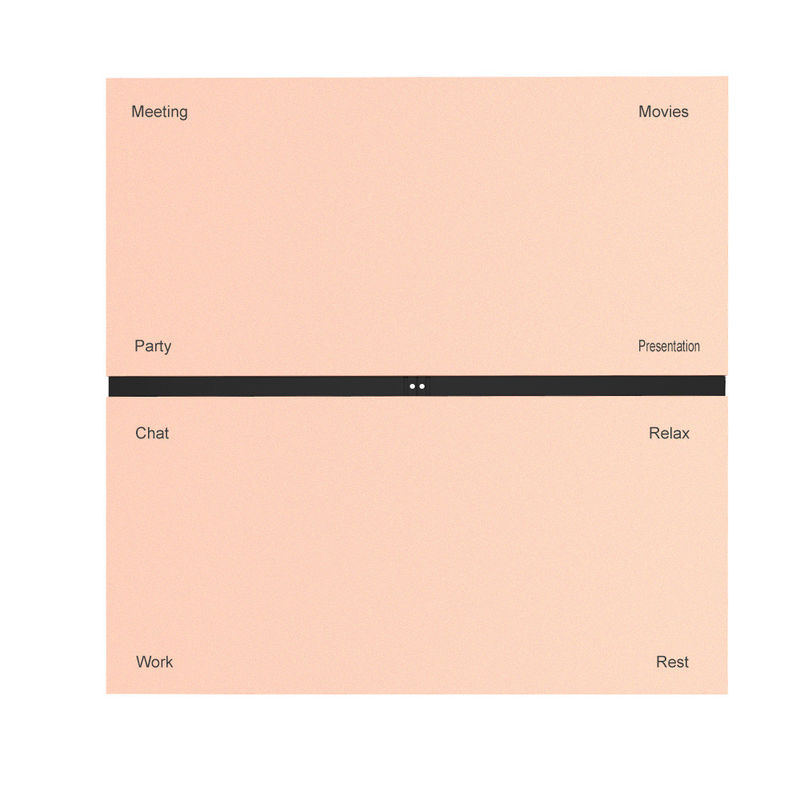

86 Box Champaign Gold Soft Touch Light Switch Applied In Home Automation System
Our Intelligent Touch Panel supports multiple situation mode to meet the requirements of our clients, You can preset the situation and turn on it with just a finger touch.
If you have any questions, please contact WhatsApp: 0086 178 9844 9880 Skype: Okystar12
Description Of Intelligent Touch Panel:
Installed with standard-86 bottom box, supports seamless connection, matched with a variety of materials and colors panel, provides 8 keys each panel, Inductive backlight, reset touch button, with vibration effect, mature structure, stable performance, adopts(aluminium alloy) oxidation process.
Provides 8 programmable buttons, ICONS can be engraved or silk-screen printed;
■ can trigger short press, short press release, long press and long press release;
■ with inductive backlight;
■ with button vibration effect;
■ standard 86 box installation, supports multiple panels to connect seamlessly;
■ standard process, champagne gold, using (aluminum alloy) oxidation;
■ panel LED indicator will flash if bus abnormal ;
■ each button with LED indicator light;
■ supports online refresh program;
■ bus communication;
|max power consumption||1.6w|
|static power consumption||0.5W|
|input key||8 keys|
|Appearance color||champagne gold(other colors can be customized)|
|LED indicator||8 key to activate white LED light|
|Key type||reset touch button, with vibration effect|
|backlight||infrared induction backlight|
|address setting||1 × address dial, address 1-63 can be set;|
|hole size of bottom box (length×width×depth)||86mmx86mmx45mm|
|external size (length×width×height)||86mm×86mm×42mm;|
|storage temperature/humidity||-40℃ -- 55℃/10% -- 93%RH;|
|Working temperature/humidity||0--45℃/20% -- 93%RH|
|installation mode||standard 86 bottom box installation|
Safe usage and Maintenance
■ read all instructions carefully before use;
■ establish a well-ventilated environment;
■ Pay attention to moisture-proof. Dust-proof and shockproof during use;
■ no rain or contact with other liquids or corrosive gases;
■ If damp or invaded by liquid, drying treatment should be carried out in time.
■ if the machine breaks down, please contact with the professional maintenance personnel or our company.
Different packing at optional:
1. Retailing Packing:
Neutral Carton Package
2. Bulking Packing:
Carton Package-Can save packing cost
Anti-static bag--Can protect electronic components from potential electrostatic hazards
3. Customized Packing
Can design and pack according to your requirement,such as colorful box,blister packing,sealed packing with your company information, bar code,ect. ( Discuss extral)
1. What is intelligent lighting control system?
A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.
2. What is the advantage compare with the traditional lighting control?
Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient
3. What Okystar can supply for you?
Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
