Infrared Mount Occupancy Led Security Lights Motion Sensor 0.36 Watt Wall Mount

video play

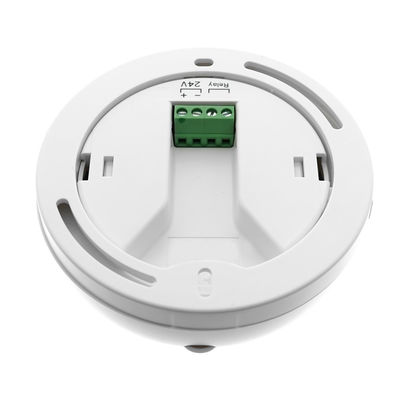

Large Image :  Infrared Mount Occupancy Led Security Lights Motion Sensor 0.36 Watt Wall Mount

Product Details:
Place of Origin: China
Brand Name: OKYSTAR
Certification: CE
Model Number: IQ-SM02
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton package
Delivery Time: 3-7days
Payment Terms: Western Union, T/T, L/C
Detailed Product Description
Product Name: Infrared Mount Occupancy Sensor Height: 56 Mm (2.2 In )
Power Supply: 24 V DC Housing Material: High-impact ABS
Sensor Technology: Passive Infrared Weight: 300g
High Light:

exterior security lights motion sensor


outdoor light fixtures motion sensor

Commercial Use 0.36 Watt Wall Mount Infrared Mount Occupancy Sensor

Infrared Mount Occupancy Sensor Specifications:


Normal Presence Mode Universal Room
Walk-through Mode Room for momentarily occupied, e.g. hallway
Horizon Detection Degree: 120 °
Detection Diameter 8 m (Installation at 2.4 m above the ground)
Delayed-Off Time Adjustment 30 sec → 30 min (Clockwise)
Ambient Light Adjustment 20 Lux → 320 Lux (Clockwise)

Passive Infrared Sensor Description


·Passive Infrared Sensor

·Wall or ceiling mount occupancy sensor

·Surface mounted or flush mounted

Infrared Mount Occupancy Led Security Lights Motion Sensor 0.36 Watt Wall Mount 0

Passive Infrared Sensor Quick Details


Temperature -22° to 122°F (-30° to 50°C)
Humidity 0% to 90% (non-condensing)

20 V/m 10-1000 Mhz

10 V/m 1- 2 GHz

Infrared Adjustment minimum→maximum(Clockwise)




Different packing at optional:
1. Retailing Packing:
    Neutral Carton Package


2. Bulking Packing:
    Carton Package-Can save packing cost. Anti-static bag--Can protect electronic components from potential electrostatic hazards


3. Customized Packing
    Can design and pack according to your requirement,such as colorful box,blister packing,sealed packing with your company information, bar          code,ect. ( Discuss extral)



  • What is intelligent lighting control system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.


  • What is the advantage compare with the traditional lighting control?


  • Improve energy efficiency
  • Reduce maintenance cost
  • Easy operation and more convenient


  • What Okystar can supply for you?


Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable. And we have technical team to support skype is okystar22 to you.
