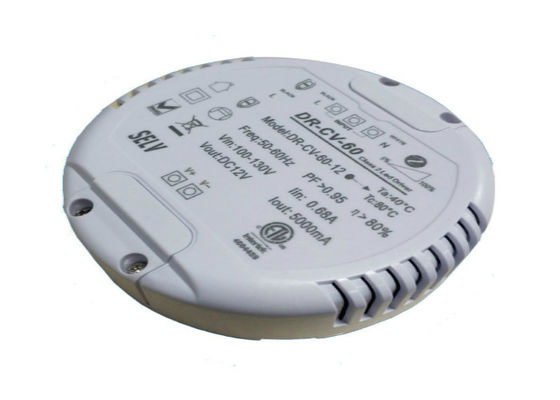

PC Plastic Cover Constant Led Driver , 60W Triac Interior Led Light Fixtures

PC Plastic Cover Constant Led Driver , 60W Triac Interior Led Light Fixtures
PC Plastic Cover Constant Led Driver , 60W Triac Interior Led Light Fixtures
video play

Large Image :  PC Plastic Cover Constant Led Driver , 60W Triac Interior Led Light Fixtures

Product Details:
Place of Origin: China
Brand Name: OKYSTAR
Certification: ce, rosh
Model Number: OKY-CC-Y60
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton package
Delivery Time: 3-7 days
Payment Terms: L/C, Western Union, T/T
Detailed Product Description
Input Rated Current: 900mA Input Full Load Efficiency: ≥85%
Output Voltage Range: 46-66V Output Rated Power: 60W
Net Weight: 220g Size: φ102*h31mm
High Light:

remote lighting control system

,

lighting control devices

Flicker free PC plastic cover 60W triac dimmable led driver constant current



Dimmable Led Driver Quick Details:



1. Dimmer driver's input power factor is greater than 0.95.

2. It's Our product's output Rated current is 900mA.

3. The output voltage range is from 46V to 66V.

4. It's input full load efficiency is greater than or equal to 85%.

5. It's Net weight is 220g.

6. The Size is φ102*h31mm.



Product Features:



1. Power supply has a high dynamic response capabilities.

2. Higher power efficiency, small heat.

3. High-frequency output rectifier are low resistance with high-frequency electrolytic capacitors.

4. Fireproof environmental protection PC plastic cover

5. Devices using the brand components, quality and stability.

6. 5 years quality warranty



Specification:



Dimming type 60W Triac Dimmable/No Dimmable
Dimming Range 0% -100%,Flicker free, Noise free, Smooth dimming

Input Voltage range 90-130 &180-240VAC In-Rush Current 30A/186μs
Frequency range 50/60Hz Max.THD(Full Load) 10%
Power factor >0.95 Time To Light(At230V) <1S
Full load efficiency ≥85% Surge Protection 1KV

Output Output mode Constant Current / Constant Voltage
Output voltage range 46-66V
Rated power 60W
Output LF Voltage Ripple (<120Hz) ±5%
Output type single
Protect Short circuit protection Intermittent restart mode, after the exception can be automatically restored
Overcurrent protection Vout*150%
Overvoltage protection < 270VAC
Environtment Working Temp/Humidity -30-45℃,5-95%RH
Storage Temp/Humidity -40-70℃,5-95%RH
Temperature coefficient ±0.03%/℃(0-50℃)
Vibration 5-55Hz/2g,30 Mimutes
Safety& EMC Safety EN60598
Pressure I/P-O/P:3KVAC IP-FG:1.88KVAC O/P-FG:0.5KVAC
Insulation resistance I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
EMC Emission EN55022,EN55015 Class B
EMC Immanity EN61547, ENV5024, EN61000-4-2/3/4/6/8/11
Other Level of protection IP20, IP66, IP67
Shell Material Plastice



Conformance with regulations:



EN 55015
EN 61000-3-2-CLASSIC
EN 61000-3-3
EN 61000-4-2,3,4,5,6,8,11
EN 60598



Wiring diagram:



PC Plastic Cover Constant Led Driver , 60W Triac Interior Led Light Fixtures 0



Shell structure:



PC Plastic Cover Constant Led Driver , 60W Triac Interior Led Light Fixtures 1





FAQ:



1. What is intelligent lighting control system?



A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.



2. What is the advantage compare with the traditional lighting control?



Improve energy efficiency

Reduce maintenance cost

Easy operation and more convenient



3. What Okystar can supply for you?



Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable. And we have technical team to support skype is okystar22 to you.
