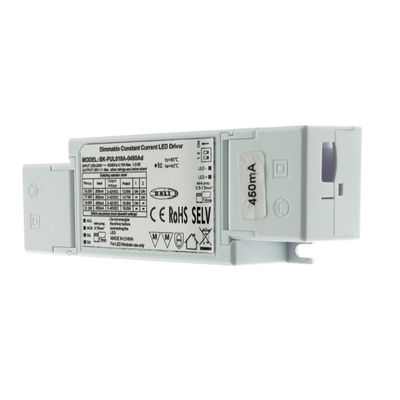

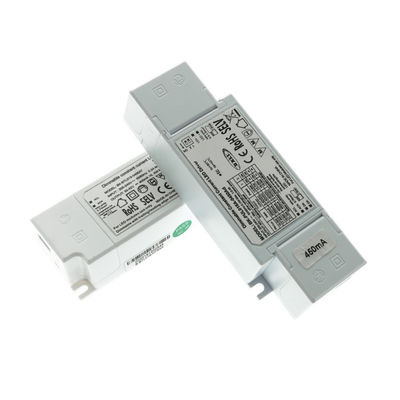

PUSH 12 Volt Dimmable LED Driver Module Intelligent Programmable 3 In 1

PUSH 12 Volt Dimmable LED Driver Module Intelligent Programmable 3 In 1
PUSH 12 Volt Dimmable LED Driver Module Intelligent Programmable 3 In 1
video play

Large Image :  PUSH 12 Volt Dimmable LED Driver Module Intelligent Programmable 3 In 1

Product Details:
Place of Origin: China
Brand Name: OKYSTAR
Certification: CE
Model Number: PUL-AP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 7.43-15usd/pc
Packaging Details: Carton package
Delivery Time: 3-5 days
Payment Terms: L/C, Western Union, T/T, Western Union, MoneyGram
Supply Ability: 100000PCS/WEEKS
Detailed Product Description
Output Voltage: 3-42V Output Power: 7-12W 12-18W 20-30W 30-40W 50-60W
Output Current: 150-250mA 300-450mA 250-700mA 700-1100mA 1100-2000mA Type: Dimming Led Driver
Product Name: 400W 500W 600W Intelligent Programmable 3 In 1 Dimming LED Driver Application: Indoor LED Lighting
High Light:

12 Volt Dimmable LED Driver

,

400W Dimmable LED Driver

,

dimmable led power supply 12v

PUSH 12 Volt Dimmable LED Driver Module Intelligent Programmable 3 In 1



PUSH 1-10V Dimming LED Drive Module 1 10v Dimmable Led Driver



NU SKU Specification Warranty
Output Power Input Voltage Output Voltage Output Current transfer efficiency PF Product
Size
(MM)
  PUL010AP 7-12W 200-240V 3-42V 150-250mA 862% >0.9 131*44*30 5years
PUL018AP 12-18W 200-240V 3-42V 300-450mA 86% >0.9 131*44*30 5years
PUL030AP 20-30W 200-240V 3-42V 250-700mA 87% >0.9 103*68*30 5years
PUL042AP 30-40W 200-240V 3-42V 700-1100mA 88% >0.9 103*68*30 5years
PUL060AP 50-60W 200-240V 3-42V 1100-2000mA 88% >0.9 123*79*30 5years

Detailed


  •  Built in active PFC function,high PF,low THD
  •  Stanby power consumption <0.5W to turn off dimmable port
  •  Can set up to 10 target brightness by DIP switch
  •  Cooling by free air convecation
  •  Suitable for indoor LED lighting applications
  •  Built-in light sensor dimming function



Feature



  •  Built in DALI/1-10V&10VPWM/PUSH dimming function.
  •  dimming methods: Sensor.
  •  5 years warranty.
  •  Protection:SCP/OCP/OVP/OTP



Parameters



  •  Input Voltage:200-240VAC
  •  Harmonic Current:<7%
  •  Working Temperature:-20~45℃
  •  Environmental Protection:RoHS
  •  Dimmable Mode: LIGHT Sensor
  •  Electromagnetic Emission:WIRELESS INTERFACE :BLE,2.4G,ZIGBEE,PIR,LIGHT COMPENSATION ,MICROWAVE,EN55015 / GB17743 / EN61000-3-3 / EN50015 / GB17743 / EN61000-3-3 / EN61000-3-2(CLASS C)
  •  Safety standard:EN61347-1/2-13 / GB19510-1/2-14 / EN62384 / EN62386-101 102 207
  •  Power Factor:>0.9
  •  Protection:SCP/OCP/OVP/OTP
  •  Storage temperature:-40~80℃
  •  Life span:50000H
  •  Hi-pot: I/P-O/P:3750VAC
  •  Electromagnetic Interference:EN61547 GB17625 EN61000- 4- 2,3,4,5,6,8,11

PUSH 12 Volt Dimmable LED Driver Module Intelligent Programmable 3 In 1 0

PUSH 12 Volt Dimmable LED Driver Module Intelligent Programmable 3 In 1 1

PUSH 12 Volt Dimmable LED Driver Module Intelligent Programmable 3 In 1 2



Our Services:

1. 3-5 working days for samples; 7-10 working days for bulk orders normally.
2. Powerful R&D team, can provide good designs and lighting solutions.
3. Quick and high efficiency after-sale team, your complaints will be solved with 24 hours by professional team.
4. We supply OEM and ODM service, and only focus on high quality products.
5. Payment terms : L/C, Western Union, T/T.
