Product Details:
Place of Origin: CHINA
Brand Name: OKYSTAR
Model Number: DIN-REL8
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Neagotiation
Packaging Details: Carton package
Delivery Time: 5-8work day
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs per day
Detailed Product Description
Relay Rating: 10 Amps Incandescent, 5 Amps Fluorescent, 16 Amps NET: (2) 4-pin 3.81mm Detachable Terminal Blocks, Paralleled
NET ID: (3) 7-Segment Green LED Digits And (2) Miniature Pushbuttons For Setting DC-NET ID; Digits Also Display Output Levels PWR: (1) Green LED, Illuminates When DC Power Is Applied To The NET Port
DC-NET Power Usage: 5 Watts (0.20Amps @ 24 Volts DC) Heat Dissipation: 20 BTU/hr
Weight: 400 G 1 - 8: (8) Sets Of (2) Captive Screw Terminals
High Light:

daytime running light control module

,

interior lamp control module

Supports 120V/220-240V Applications Smart Home Linghting Control Switch



Description of 8 Channel High-Voltage Switch:

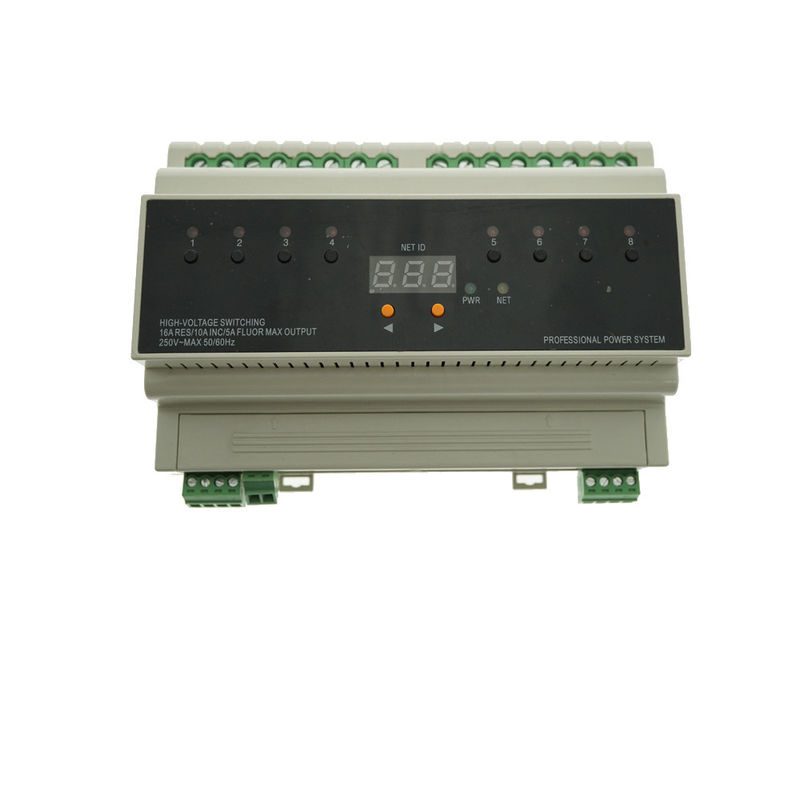

The DIN-REL8 is an 8-channel lighting control module designed to support switching of non-dimmable lighting and fans. A single model supports both 120 and220-240 Volt applications. Each channel handles incandescent loads up to 10 Amps, fluorescent loads up to 5 Amps, and also 1/2 HP motors. Wiring connections are made using screw terminals positioned along the top and bottom, clearly accessible from the front for easy installation and servicing. All setup controls and indicators are positioned on the center front panel. When installed in an enclosure utilizing 45 mm cutouts, the DIN-REL8's front panel stays accessible while the connections are concealed.



DIN Rail Installation

The DIN-REL8 is designed to snap onto a standard DIN rail for installation
in a wall mount enclosure. Wiring connections are made using screw
terminals positioned along the top and bottom, clearly accessible from the
front for easy installation and servicing. All setup controls and indicators are positioned on the center front panel. When installed in an

enclosure utilizing 45 mm cutouts, the DIN-REL8's front panel stays
accessible while the connections are concealed




Override Input
An override input is provided to allow an external con tact closure to momentarily override the control system program and set each channel

DC-NET
The DIN-REL8 communicates with a DIN-CP1 automation processor, or other third-party control syste


Other Protocols
Supports multiple controlling protocols such as DMX,
ModBus RTU, ModBus ASCII, and third-party protocols
Neon/Cold cathode, fluorescent, motors


SPECIFICATIONS

CONNECTIONS
Connector
(8) sets of (2) captive screw terminals; Isolated Class 1
SPST relay switch circuits 1 - 8
Relay Rationg
10 Amps incandescent, 5 Amps fluorescent,
16 Amps resistive, 0.5 HP @ 240 Volts AC
(per channel)
NET
(2) 4-pin 3.81mm detachable terminal blocks, paralleled
OVERRIDE
(1) 2-pin 3.81mm detachable terminal blocks,
paralleled;Sensing input for external low-voltage
contact closure; Activates override mode when
a closure is present;







Enclosure
Light gray polycarbonate housing with polycarbonate label overlay, UL94V-0 rated, 35mm DIN
EN 60715 rail mount, DIN 43880 form factor for enclosures with 45mm front panel cutout, occupies 8 DIN module spaces(143mm)





Power Requirements
DC-NET Power Usage: 5 Watts (0.20Amps @ 24 Volts DC)







CONTROLLERS&INDICATERS

Indicator light &button



(8) Red LEDS  and (8) miniature pushbuttons for status indication and local control of each chanel

NET ID



(3) 7-Segment green LED digits and (2) miniature pushbuttons for setting DC-NET ID; digits also display output levels
PWR



(1) Green LED, illuminates when DC power is applied to the NET port
NET



(1) Yellow LED, indicates communication with the control processor
reset

(1) Recessed miniature pushbutton, resets internal processor







ENVIRONMENTAL
Temperature
32° to 104°F (0° to 40°C)
Humidity
10% to 90% RH (non-condensing)
Hit Dissipation
20 BTU/hr
Weight
400 g





Supports 120V/220-240V Applications Smart Home Linghting Control Switch 0





Package:

Different package at optional:
1. Retailing Package:Paper Package
2. Bulking Packing:Colorful Package
3. Retailing Box package design according to your requirement( Order > 1000PCS)



FAQ:



1. What is intelligent lighting control system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.



2. What is the advantage compare with the traditional lighting control?



Improve energy efficiency

Reduce maintenance cost

Easy operation and more convenient



3. What Okystar can supply for you?



Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
