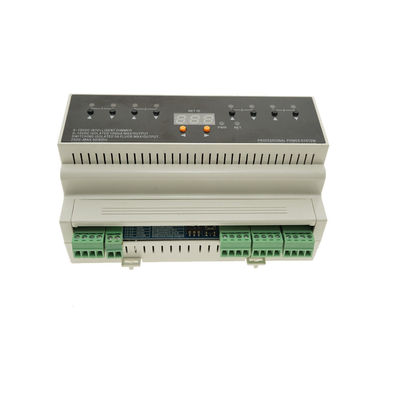

4 Channels of 0-10V Dimming Control Module For Home Automation

4 Channels of 0-10V Dimming Control Module For Home Automation
4 Channels of 0-10V Dimming Control Module For Home Automation
video play

Large Image :  4 Channels of 0-10V Dimming Control Module For Home Automation

Product Details:
Place of Origin: China
Brand Name: OKYSTAR
Certification: CE
Model Number: DIN-FLV4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton package
Delivery Time: 3-5 work day
Payment Terms: Western Union, T/T, L/C
Supply Ability: 1000 pcs per day
Detailed Product Description
Product Name: 0-10 V Dimming Module Dimmer Channels: 4
Working Humidity: 10% To 90% RH (non-condensing) Size: 143*98*68mm
Maximum Per Channel: 5 Amps @ 120 To 240 Volts AC, 50/60 Hz Weight: 350 G
High Light:

daytime running light control module

,

interior lamp control module

4 Channels of 0-10V Dimming Control Module For Home Automation



Description of  4 channels of 0-10 Volt dimming module:



> It has 4 channels of 0-10 Volt dimming control

> It can support 120 and 220 to 240 Volt, 50/60 Hz applications

> It can allows switching of lighting and exhaust fans

> Includes an override input

> Communicates using DC-NET

> Sets up via the front panel or through software

> Offers programmable functionality via DIN-CP1





Override Input​ of 4 channels of 0-10 Volt dimming module:



An override input is provided to allow an external contact closure to momentarily override the control system program and set each channel output to its override preset level. Levels can be adjusted and saved locally from the front panel or remotely via software.



DC-NET



The DIN-FLV4 communicates with DC-NET control systems such as the DIN-CP1 Automation Processors via the DC-NET control network. Use one of the unit’ s two DC-NET ports to daisy-chain several DIN Rail Series automation control modules.



Connections



OUTPUT 1 – 4 (2) 4-pin 3.81mm detachable terminal blocks comprising (4) isolated dimming control outputs
Voltage Control Range 0 to 10 Volts DC
Maximum Sink Current 100mA per channel;



4 Channels of 0-10V Dimming Control Module For Home Automation 0



Enclosure



Light gray polycarbonate housing with polycarbonate label overlay, UL94 V-0 rated, 35mm DIN EN 60715 rail mount, DIN 43880 form factor for enclosures with 45mm front panel cutout, occupies 8 DIN module spaces (143mm)



Package:

Different package at optional:
1. Retailing Package:Paper Package
2. Bulking Packing:Colorful Package
3. Retailing Box package design according to your requirement( Order > 1000PCS)



FAQ:



1. What is intelligent lighting control system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.



2. What is the advantage compare with the traditional lighting control?



Improve energy efficiency

Reduce maintenance cost

Easy operation and more convenient



3. What Okystar can supply for you?



Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
