DIN Rail AC240V Lighting Control Module With Detachable Terminal Blocks

China Shenzhen Okystar Technology Co., Ltd. certification
This is a fantastic sourcing platform, considerate service and good quality product.

—— Michael

On-time delivery. And support is good and fast.

—— Daniel weree

I'm Online Chat Now

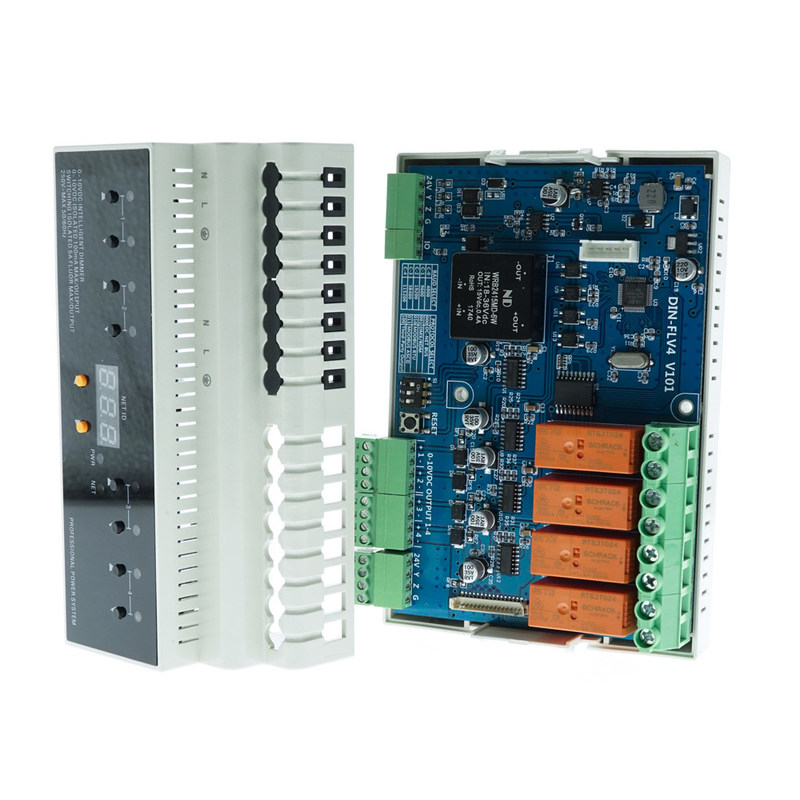

DIN Rail AC240V Lighting Control Module With Detachable Terminal Blocks

DIN Rail AC240V Lighting Control Module With Detachable Terminal Blocks
DIN Rail AC240V Lighting Control Module With Detachable Terminal Blocks

Large Image :  DIN Rail AC240V Lighting Control Module With Detachable Terminal Blocks

Product Details:

Place of Origin: China
Brand Name: OKYSTAR
Certification: CE
Model Number: DIN-FLV4

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $40-60/pcs
Packaging Details: 1pcs/box, withing 14kg for DIN Rail Smart Lighting Control System
Delivery Time: 2-7 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 2000pcs/month
Detailed Product Description
Product Name: DIN Rail 0-10V Dimmer Module Dimmer Channels: 4
Maximum Per Channel: 5 Amps @ 120 To 240 Volts AC, 50/60 Hz Feature: Smart Lighting Control
Warranty: 1 Years Application: Home/building Automation Lighting Control System
Voltage Control Range: 0 To 10 Volts DC
High Light:

AC240V Lighting Control Module

,

DIN Rail 10V Dimmer Module

,

DIN Rail 10V Lighting Control Module

DIN Rail AC240V Lighting Control Module With Detachable Terminal Blocks

0-10V DIN Rail Universal Dimmer with Detachable Terminal Blocks


0-10V DIN Rail Universal Dimmer Features


> 4 channels of 0-10 Volt dimming control
> Supports 120 and 220 to 240 Volt, 50/60 Hz applications
> Allows switching of lighting and exhaust fans
> Includes an override input
> Communicates using DC-NET
> Sets up via the front panel or through software
> Offers programmable functionality via DIN-CP1



Smart Lighting Control System Solution Advantages

1. Cost and time advantages in planning, installation, commissioning and reprogramming
2. Improves comfort.
3. High flexibility, extense function at any time
4. DIN rail components and surface mounted devices
5. Input and output combinated various devices.
6. All loads in the room (lights, blinds, heating, etc.) can be controlled using a central device




Our Protocol:
MODBUS, ASCII, Third-party, DMX and DC NET Bus




0-10V DIN Rail Universal Dimmer Installation


The DIN-FLV4 is designed to snap onto a standard DIN rail for installation in a wall mount enclosure. Wiring connections are made using screw terminals positioned along the top and bottom, clearly accessible from the front for easy installation and servicing. All setup controls and indicators are positioned on the center front panel. When installed in an enclosure utilizing 45 mm cutouts, the DIN-FLV4’ s front panel stays accessible while the connections are concealed.



0-10V DIN Rail Universal Dimmer Specifications



Dimmer Channels
4

Maximum Per Channel

5 Amps @ 120 to 240 Volts AC, 50/60 Hz

Dim Load Types

0-10 Volt fluorescent ballast or LED driver (4-wire); Maximum of 40 dimmable ballasts/drivers

Switch Load Types

Incandescent, magnetic low-voltage, electronic low-voltage, neon/cold cathode, fluorescent, motors
Temperature
32° to 104°F (0° to 40°C)
Humidity
10% to 90% RH (non-condensing)



0-10V DIN Rail Universal Dimmer Connections


1.  OUTPUT 1 – 4:  (2) 4-pin 3.81mm detachable terminal blocks comprising (4) isolated dimming control outputs
2.  Voltage Control Range: 0 to 10 Volts DC
3.  Maximum Sink Current: 100mA per channel;
4.  Connector:  (4) sets of (2) captive screw terminals; Isolated Class 1 SPST relay switchcircuits 1 – 4;
5.  Relay Rating: 5 Amps maximum per channel
6.  Maximum Wire Size: 12 AWG (2.5 mm²)



0-10V DIN Rail Universal Dimmer Application

DIN Rail AC240V Lighting Control Module With Detachable Terminal Blocks 0


Automation Lighting Control System Applied in: stadium, school, hospital, airport, metro, church, office, commercial building, parking lot/car park/parking area, outdoor spaces, foyer, lobby, elevator hall, public walkway, bathroom, underground garage, meeting room, villa, home lighting, plazas, shopping malls, public building, industrial plants and factories, etc


Different packing at optional:
1. Retailing Packing:
Neutral Carton Package

2. Bulking Packing:
Carton Package-Can save packing cost
Anti-static bag--Can protect electronic components from potential electrostatic hazards

3. Customized Packing
Can design and pack according to your requirement,such as colorful box,blister
packing,sealed packing with your company information, bar code,ect. ( Discuss extral)


FAQ
1. What is intelligent lightincontrol g system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.

2. What is the advantage compare with the traditional lighting control?
Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient

3. What Okystar can supply for you?
Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
