Product Details:
Payment & Shipping Terms:
|
| Product Name: | 0-10 V Lighting Controller | Customized: | Yes |
|---|---|---|---|
| Humidity: | 10% To 90% RH (non-condensing) | Temperature: | 32° To 104°F (0° To 40°C) |
| Maximum Per Channel: | 5 Amps @ 120 To 240 Volts AC, 50/60 Hz | Tip: | We Have 15 Years Experience Technical Support Team |
| High Light: | led light control module,interior lamp control module |
||

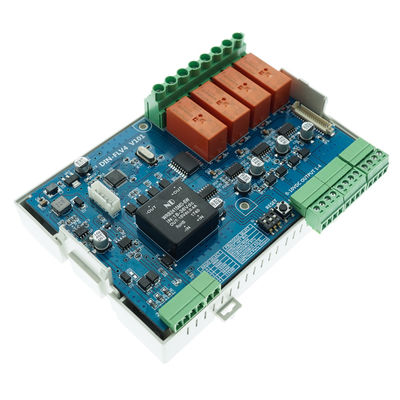

Quick Details of 0 to 10 Volts dimming module:
> 0-10V module have 4 channels
> It can support 120 and 220 to 240 Volt
> Allows switching of lighting and exhaust fans
> Communicates using DC-NET
> Sets up via the front panel or through software
Description of 0 to 10 Volts dimming module:
An override input is provided to allow an external contact closure to momentarily override the control system program and set each channel output to its override preset level. Levels can be adjusted and saved locally from the front panel or remotely via software.
0 to 10 Volts Connections
| OUTPUT 1 – 4 | (2) 4-pin 3.81mm detachable terminal blocks comprising (4) isolated dimming control outputs |
| Voltage Control Range | 0 to 10 Volts DC |
| connector | (4) sets of (2) captive screw terminals; Isolated Class 1 SPST relay switch circuits 1 – 4; |
| Relay Rating | 5 Amps maximum per channel |
| NET | (2) 4-pin 3.81mm detachable terminal blocks, paralleled; DC-NET slave port |
0 to 10 Volts Override Input
An override input is provided to allow an external contact closure to momentarily override the control system program and set each channel output to its override preset level. Levels can be adjusted and saved locally from the front panel or remotely via software.
DC-NET of 0 to 10 Volts
The DIN-FLV4 communicates with DC-NET control systems such as the DIN-CP1 Automation Processors via the DC-NET control network. Use one of the unit’ s two DC-NET ports to daisy-chain several DIN Rail Series automation control modules.
Package:
Different package at optional:
1. Retailing Package:Paper Package
2. Bulking Packing:Colorful Package
3. Retailing Box package design according to your requirement( Order > 1000PCS)
FAQ:
1. What is intelligent lighting control system?
A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.
2. What is the advantage compare with the traditional lighting control?
Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient
3. What Okystar can supply for you?
Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
