24VDC RS485 Din Rail Automation Processor

24VDC RS485 Din Rail Automation Processor
24VDC RS485 Din Rail Automation Processor
video play

Large Image :  24VDC RS485 Din Rail Automation Processor

Product Details:
Place of Origin: China
Brand Name: OKYSTAR
Certification: CE,ROHS
Model Number: DIN-CP1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton package
Delivery Time: 3-5 work day
Payment Terms: Western Union, T/T, L/C
Supply Ability: 1000 pcs per day
Detailed Product Description
Product Name: Automation Processor Input Voltage: DC24V
Working Humidity: 10% To 90% RH (non-condensing) Power Output: 250Ma
LCD Display: 128*64 Weight: 250 G
High Light:

led light control module


interior lamp control module

32-bit ARM Home Automation RS-485 Din Rail Control Processor​


Description of Control Processor​:


The DIN-CP1 is a intelligent control processor designed for intelligent lighting and automation applications. DIN rail mounting enables modular installation alongside OKYSTAR DIN rail lighting and automation control modules and other third-party DIN rail mountable devices.




Specifications of Control Processor​:


Input voltage DC24V
I/O 1 – 4 (1) 5-pin 3.81mm detachable terminal block comprising (4) digital input/output ports (referenced to GND);
Digital Input Rated for 0-24 Volts DC, input impedance 20k ohms, logic threshold 1.25 Volts DC
Digital Output 250 mA sink from maximum 24 Volts DC, catch diodes for use with “real world” loads
COM 1 – 5 (5) 4-pin 3.81mm detachable terminal blocks Bidirectional RS-485 ports; Up to 115.2k baud

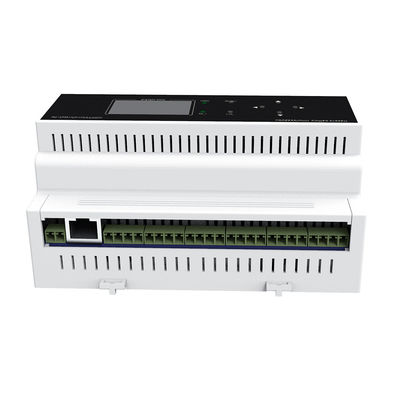

24VDC RS485 Din Rail Automation Processor 0

Control Processor Quick Details:


1.Ethernet network communication ports support 8pcs TCP and 8pcs UDP ports connection to control third-party devices . Each TCP/UDP connection can be configured as sever or client way.

2.Ethernet network communication port provides an upward connection TCP/UDP port, which can connect the computer , central control system, compatible with AMX, Crestron, C4 and all third-party control system network connection

3.The DIN-CP1 has 5-way RS-485 BUS communication port, supports DC-Net BUS protocol, DMX protocol, ModBUS RTU protocol, ModBUS Ascii protocol, third-party protocols and other control protocols; it supports multiple types of control panels, sensor access to control third-party equipment


Control Processor Specifications


Information Display 128*64 LCD display, display system configuration and status information
PWR (1) Green LED, illuminates when DC power is applied to the NET port
NET (1) Yellow LED, Indicates communication with an external control processor




1. What is intelligent lighting control system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.


2. What is the advantage compare with the traditional lighting control?


Improve energy efficiency

Reduce maintenance cost

Easy operation and more convenient


3. What Okystar can supply for you?


Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
