|Product Name:||DIN Rail 60 Watt DC-NET Power Supply||Working Temperature:||32° To 104° F (0° To 40° C)|
|Working Humidity:||10% To 90% RH (non-condensing)||Heat Dissipation:||26 BTU/hr|
led light control module,
interior lamp control module

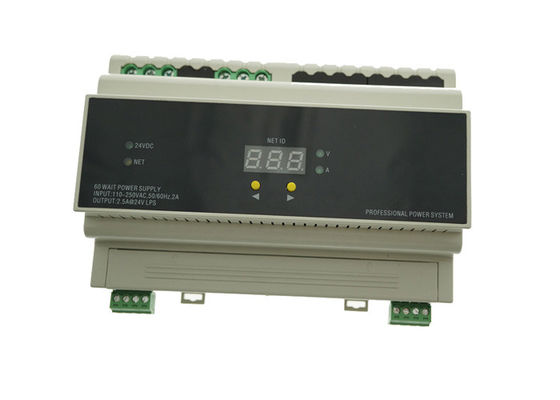

* 60 Watt DC-NET power supply module
* Powers the other DC-NET devices
* Includes two DC-NET power ports
* DC-NET data passes through unaffected
* Overload protection and detection of voltage and current
* 100-277 Volt AC line powered
|Line Power/Mains: 200 VA (2 Amps max.) at 110-250 Volts AC, 50/60 Hz|
|Input Current : 1.1 Amps at 120 Volts AC;|
|0.65 Amps at 230 Volts AC;|
|0.57 Amps at 277 Volts AC;|
|Measured at full rated output|
Power Consumption: 70 Watts at full rated output
Controls & Indicators:
Information Display:128*64 LCD display, display system configuration and status information
PWR:(1) Green LED, illuminates when DC power is applied to the NET port
NET:(1) Yellow LED, Indicates communication with an external control processor
BUTTON 1 – 6: (8) miniature pushbuttons for local control of devices
Different package at optional:
1. Retailing Package:Paper Package
2. Bulking Packing:Colorful Package
3. Retailing Box package design according to your requirement( Order > 1000PCS)
1. What is intelligent lighting control system?
A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.
2. What is the advantage compare with the traditional lighting control?
Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient
3. What Okystar can supply for you?
Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
