| Input Voltage Range: | 90-130&180-240V/AC | Input Frequency Range: | 50-60Hz |
|---|---|---|---|
| Output Voltage Range: | 40-57V | Output Rated Power: | 40W |
| Net Weight: | 220g | Size: | φ102*h31mm |
| Highlight: | 57V central control system,40W automated control systems,40W Centralized Control System |
||

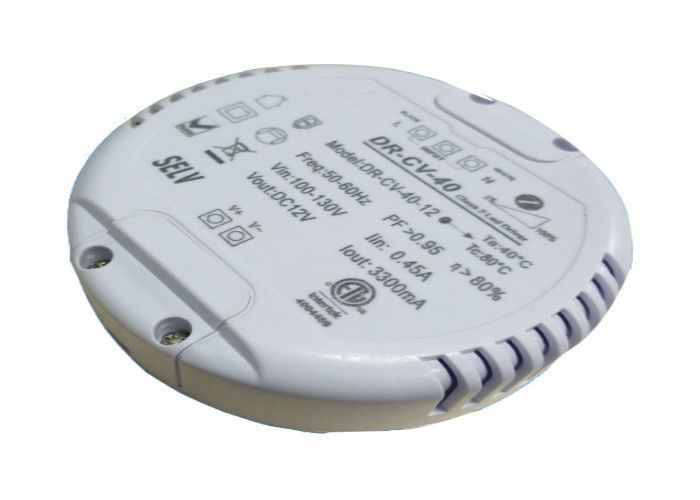

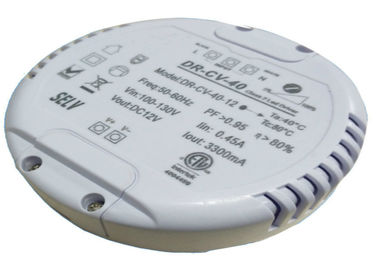

Led Power Supply Dimmable LED Driver 40W Constant Voltage Output
Dimmer driver Quick Details:
1. Dimmer driver's input AC current is 0.42A/0.21A.
2. It's Our product's output Rated current is 700mA.
3. The input frequency range of dimmer driver is from 50Hz to 60Hz.
4. The output rated power is 40W.
5. It's Net weight is 220g.
6. The Size of our product is φ102*h31mm.
Product Features:
1. Power supply output voltage stability.
2. Full-ioslated,delivering up to 40W of power.
3. There are soft-start power, high reliability products.
4. Margin component parameters, and long product life.
5. Fireproof environmental protection PC plastic cover
6. Overcurrent protection:Hiccup mode, after the removal of abnormal flow can be automatically restored
Specification:
| Dimming type | 40W Triac Dimmable/No Dimmable | ||||
| Dimming Range | 0% -100%,Flicker free, Noise free, Smooth dimming | ||||
| Input | Voltage range | 90-130 &180-240VAC | In-Rush Current | 30A/186μs | |
| Frequency range | 50/60Hz | Max.THD(Full Load) | 10% | ||
| Power factor | >0.95 | Time To Light(At230V) | <1S | ||
| Full load efficiency | ≥85% | Surge Protection | 1KV | ||
| Output | Output mode | Constant Current / Constant Voltage | |||
| Output voltage range | 40-57V | ||||
| Rated power | 40W | ||||
| Output LF Voltage Ripple (<120Hz) | ±5% | ||||
| Output type | single | ||||
| Protect | Short circuit protection | Intermittent restart mode, after the exception can be automatically restored | |||
| Overcurrent protection | Vout*150% | ||||
| Overvoltage protection | < 270VAC | ||||
| Environtment | Working Temp/Humidity | -30-45℃,5-95%RH | |||
| Storage Temp/Humidity | -40-70℃,5-95%RH | ||||
| Temperature coefficient | ±0.03%/℃(0-50℃) | ||||
| Vibration | 5-55Hz/2g,30 Mimutes | ||||
| Safety& EMC | Safety | EN60598 | |||
| Pressure | I/P-O/P:3KVAC IP-FG:1.88KVAC O/P-FG:0.5KVAC | ||||
| Insulation resistance | I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH | ||||
| EMC Emission | EN55022,EN55015 Class B | ||||
| EMC Immanity | EN61547, ENV5024, EN61000-4-2/3/4/6/8/11 | ||||
| Other | Level of protection | IP20, IP66, IP67 | |||
| Shell Material | Plastice | ||||
Conformance with regulations:
EN 55015
EN 61000-3-2-CLASSIC
EN 61000-3-3
EN 61000-4-2,3,4,5,6,8,11
EN 60598
Wiring diagram:
Shell structure:
FAQ:
1. What is intelligent lighting control system?
A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.
2. What is the advantage compare with the traditional lighting control?
Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient
3. What Okystar can supply for you?
Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable. And we have technical team to support skype is okystar22 to you.
