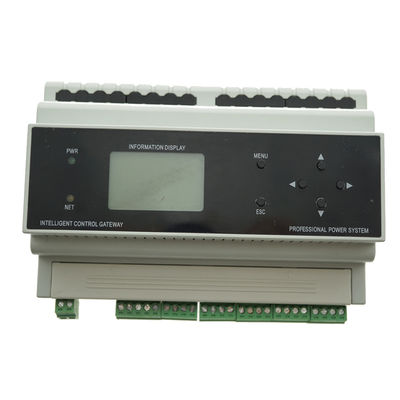

4-channel Universal Lighting Control Module supports dimming of both forward and reverse phase

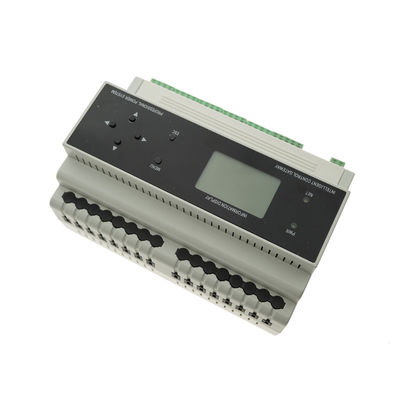

4-channel Universal Lighting Control Module supports dimming of both forward and reverse phase

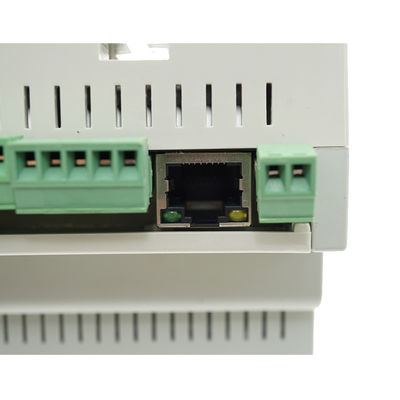

4-channel Universal Lighting Control Module supports dimming of both forward and reverse phase
video play

Large Image :  4-channel Universal Lighting Control Module supports dimming of both forward and reverse phase

Product Details:
Place of Origin: China
Brand Name: Okystar
Model Number: DIN-DM4
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $118,1-10pcs; $112.10 ,11-100pcs; $108.56 ,100-300pcs; $103.84, 300pcs-500pcs
Packaging Details: carton package
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: ≥1000pcs per day
Detailed Product Description
Dimmer Channels: 4 Maximum Per Channel: 1.5 Amps @ 120 To 240 Volts AC, 50/60 Hz;
Input Voltage: 120 To 240 Volts AC, 50/60 Hz Weight: 450g
Size: 143*98*68mm Temperature: 32° To 104°F (0° To 40°C)
Humidity: 10% To 90% RH (non-condensing) Load Types: Incandescent Loads Or LEDLamps
Line Power: 120 To 240 Volts AC, 50/60 Hz
High Light:

daytime running light control module

,

interior lamp control module

4-channel Universal Lighting Control Module supports dimming of both forward and reverse phase

Description

The DIN-DM4 is a 4-channel universal lighting control module designed to support dimming of both forward and reverse phase type loads.

A single model supports 4-Way 1.5A Dimming, Each channel Can Control 330W Load Independently , 2channel Or More channel Combining Power Output At Optional, Maximum 6A (1300W) Combining Output.







Enclosure
Light gray polycarbonate housing with polycarbonate label overlay, UL94 V-0 rated, 35mm DIN EN 60715 rail mount, DIN 43880 form
factor for enclosures with 45mm front panel cutout, occupies 8 DIN module spaces (143mm)



Load Types
Incandescent loads or LEDLamps



Line Power

120 to 240 Volts AC, 50/60 Hz
size
143mm(Length)*98mm(Width)*68mm*(Height)



weight

450 g









4-channel Universal Lighting Control Module supports dimming of both forward and reverse phase 0







1.The DIN-DM4 is a 4-channel universal lighting control module

Designed to support dimming of both forward and reverse phase type loads.



2.A single model supports 4-Way 1.5A Dimming, Each channel Can Control 330W Load Independently , 2channel Or More channel Combining Power Output At Optional, Maximum 6A (1300W) Combining Output.





Different packing at optional:
1. Retailing Packing:
Neutral Carton Package

2. Bulking Packing:
Carton Package-Can save packing cost
Anti-static bag--Can protect electronic components from potential electrostatic hazards

3. Customized Packing
Can design and pack according to your requirement,such as colorful box,blister packing,sealed packing with your company information, bar code,ect. ( Discuss extral)







FAQ:



1. What is intelligent lighting control system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.



2. What is the advantage compare with the traditional lighting control?



Improve energy efficiency

Reduce maintenance cost

Easy operation and more convenient



3. What Okystar can supply for you?



Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
