|Dimmer Channels:||4||Maximum Per Channel:||1.5 Amps @ 120 To 240 Volts AC, 50/60 Hz;|
|Input VoltaInput Voltage:||120 To 240 Volts AC, 50/60 Hzge：120 To 240 Volts AC, 50/60 Hz||Size:||143*98*68mm|
|Temperature:||32° To 104°F (0° To 40°C)|
led light control module,
interior lamp control module
4-Channel Universal Lighting Control ModuleSupports Dimming Of Both Forward And Reverse Phase

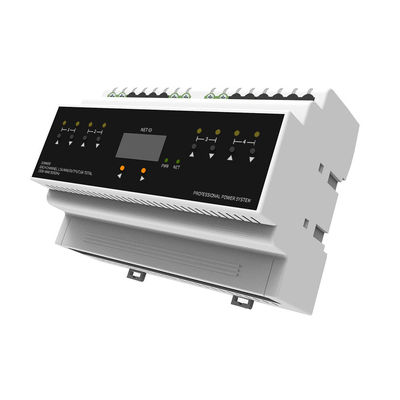

The DIN-DM4 is a 4-channel universal lighting control module Designed to support dimming of both forward and reverse phase type loads.
A single model supports 4-Way 1.5A Dimming, Each channel Can Control 330W Load Independently , 2channel Or More channel Combining Power Output At Optional, Maximum 6A (1300W) Combining Output.
Control & Indicators
(3) 7-Segment green LED digits and (2) miniature pushbuttons for setting DC-NET ID; digits also display output levels
(1) Green LED, illuminates when DC power is applied to the NET port
(1) Yellow LED, indicates communication with the control processor
(1) Recessed miniature pushbutton, resets internal processor
LOADS 1 – 4
(8) Red LEDs and (8) miniature pushbuttons for status indi-cation and local control of each channel
Different packing at optional:
1. Retailing Packing:
Neutral Carton Package
2. Bulking Packing:
Carton Package-Can save packing cost
Anti-static bag--Can protect electronic components from potential electrostatic hazards
3. Customized Packing
Can design and pack according to your requirement,such as colorful box,blister packing,sealed packing with your company information, bar code,ect. ( Discuss extral)
1. What is intelligent lighting control system?
A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.
2. What is the advantage compare with the traditional lighting control?
Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient
3. What Okystar can supply for you?
Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
