| Product Name: | 0-10V Dimmer Module | Working Temperature: | 32° To 104° F (0° To 40° C) |
|---|---|---|---|
| Working Humidity: | 10% To 90% RH (non-condensing) | Dimmer Channels: | 4 |
| Maximum Per Channel: | 5 Amps @ 120 To 240 Volts AC, 50/60 Hz | ||
| Highlight: | led light control module,daytime running light control module |
||

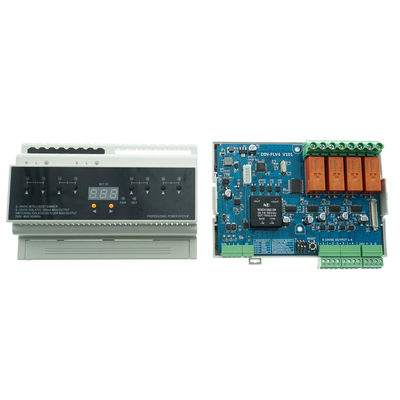

Description of 0-10V Dimmer Module:
> Offers programmable functionality via DIN-CP1
> Sets up via the front panel or through software
> 4 channels of 0-10 Volt dimming control
> 0-10 Volt fluorescent ballast or LED driver (4-wire); Maximum of 40 dimmable ballasts/drivers
> Light gray polycarbonate housing with polycarbonate label overlay, UL94 V-0 rated, 35mm DIN EN 60715 rail mount, DIN 43880 form factor for enclosures with 45mm front panel cutout, occupies 8 DIN module spaces (143mm)
> Allows switching of lighting and exhaust fans
Specification of 0-10V Dimmer Module:
| OUTPUT 1 – 4 | (2) 4-pin 3.81mm detachable terminal blocks comprising (4) isolated dimming control outputs |
| Voltage Control Range | 0 to 10 Volts DC |
| Maximum Wire Size | 12 AWG (2.5 mm²) |
| Relay Rating | 5 Amps maximum per channel |
| Connector | (4) sets of (2) captive screw terminals; Isolated Class 1 SPST relay switch circuits 1 – 4; |
0-10V Dimmer Module Features:
0-10 Volt fluorescent ballast or LED driver (4-wire); Maximum of 40 dimmable ballasts/drivers
0-10V Dimmer Module Package:
Different package at optional:
1. Retailing Package:Paper Package
2. Bulking Packing:Colorful Package
3. Retailing Box package design according to your requirement( Order > 1000PCS)
FAQ:
1. What is intelligent lighting control system?
A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.
2. What is the advantage compare with the traditional lighting control?
Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient
3. What Okystar can supply for you?
Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
