Product Details:
Payment & Shipping Terms:
|
Product Name: | 0-10 V Dimmer | Dimmer Channels: | 4 |
---|---|---|---|
Humidity: | 10% To 90% RH (non-condensing) | Temperature: | 32° To 104°F (0° To 40°C) |
Weight: | 350 G | Tip: | We Have 15 Years Experience Technical Support Team |
High Light: | 10 volt dimmer switch,1 10 volt led dimmer |
Quick Details of 0 to 10 Volts dimming module:
> 0-10V module have 4 channels
> It can support 120 and 220 to 240 Volt
> Applications is 50/60 Hz
> Includes an override input
> 0-10V use DC-NET communication
Description of 0 to 10 Volts dimming module:
An override input is provided to allow an external contact closure to momentarily override the control system program and set each channel output to its override preset level. Levels can be adjusted and saved locally from the front panel or remotely via software.
0 to 10 Volts Connections

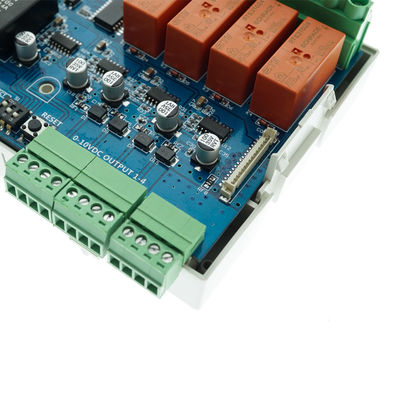

OUTPUT 1 – 4 | (2) 4-pin 3.81mm detachable terminal blocks comprising (4) isolated dimming control outputs |
Voltage Control Range | 0 to 10 Volts DC |
DC-NET Power Usage | 2.5 Watts (0.1 Amps) @ 24 Volts DC |
Dim Load Types | 0-10 Volt fluorescent ballast or LED driver (4-wire); Maximum of 40 dimmable ballasts/drivers |
Switch Load Types[1] | Incandescent, magnetic low-voltage, electronic low-voltage, neon/cold cathode, fluorescent, motors |
0 to 10 Volts DIN Rail Installation
The DIN-FLV4 is designed to snap onto a standard DIN rail for installation in a wall mount enclosure. Wiring connections are made using screw terminals positioned along the top and bottom, clearly accessible from the front for easy installation and servicing. All setup controls and indicators are positioned on the center front panel. When installed in an enclosure utilizing 45 mm cutouts, the DIN-FLV4’ s front panel stays accessible while the connections are concealed.
DC-NET of 0 to 10 Volts
The DIN-FLV4 communicates with DC-NET control systems such as the DIN-CP1 Automation Processors via the DC-NET control network. Use one of the unit’ s two DC-NET ports to daisy-chain several DIN Rail Series automation control modules.
Package:
Different package at optional:
1. Retailing Package:Paper Package
2. Bulking Packing:Colorful Package
3. Retailing Box package design according to your requirement( Order > 1000PCS)
FAQ:
1. What is intelligent lighting control system?
A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.
2. What is the advantage compare with the traditional lighting control?
Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient
3. What Okystar can supply for you?
Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
