Product Details:
Payment & Shipping Terms:
|
| Product Name: | DALI LED Driver | High Efficiency: | 89% |
|---|---|---|---|
| Low THD: | < 10% | Ordinary Dimmable Mode: | Z=d:DALI/z=M:1-10V |
| Environmental Protection: | ROHS | Warm Tips: | Please Tell Us Which Voltage You Want When Make Order |
| High Light: | led lamp driver,programmable led driver |
||

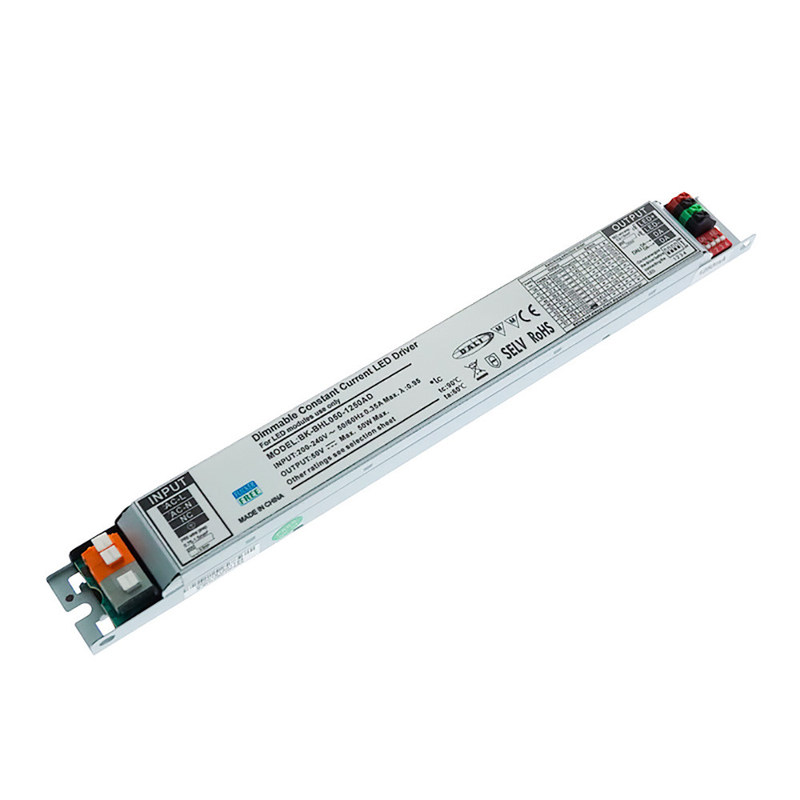

10-30W Flicker Free Constant Current Dimmable DALI Led Driver, Dip Switch
DALI Led Driver Quick Details:
1. Input Voltage 200-240VAC
2. Withstand 380VAC high voltage short-time shock.
3. Conform to ERP requirement
5. Stand-by consumption <0.5W
6. Turn-on delay time <0.5S.
7. Achieve flicker free dimming and minimum brightness could close the driver.
8. Dali member.
9. Passed certification: ENEC,RCM,CCC,SAA, SUD-TUV.
10. Output current could adjusted by end user through DIP switch.
DALI Led Driver Parameters:
| Environmental Protection | CE |
| Certificates | ENEC CCC RCM CE |
| Power Factor | >0.95 |
| Protection | SCP/OCP/OVP/OTP |
| Storage temperature | -40~80℃ |
DALI Led Driver Product Series
| SKU NO. | Output Power | Input Voltage | Output Voltage | Output Current | transfer efficiency | PF | Product Size(MM) |
| DMP030-0750AD | 10-30W | 200-240V | 3-42V | 300-750MA | 86-88% | ＞0.9 | 245*30*21 |
| DMP040-1000AD | 30-40W | 200-240V | 3-42V | 800-1000MA | 86-88% | ＞0.9 | 245*30*21 |
| DMP050-1250AD | 40-50W | 200-240V | 3-42V | 800-1250MA | 86-88% | ＞0.9 | 285*30*21 |
| DMP060-1650AD | 50-60W | 200-240V | 3-42V | 1200-1650MA | 86-88% | ＞0.9 | 355*36*23 |
| DMP070-2000AD | 60-70W | 200-240V | 3-42V | 1300-2000MA | 86-88% | ＞0.9 | 355*36*23 |
Our Services:
1. 3-5 working days for samples; 7-10 working days for bulk orders normally.
2. Powerful R&D team, can provide good designs and lighting solutions.
3. Quick and high efficiency after-sale team, your complaints will be solved with 24 hours by professional team.
4. We supply OEM and ODM service, and only focus on high quality products.
5. Payment terms : L/C, Western Union, T/T.
FAQ:
1. What is intelligent lighting control system?
A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.
2. What is the advantage compare with the traditional lighting control?
Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient
3. What Okystar can supply for you?
Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable. And we have technical team to support skype is okystar22 to you.
