| Power Supply: | 24V DC | Product Name: | Wall Smart Switch |
|---|---|---|---|
| Max Power Consumption: | 1.6w | Keypad Buttons Consumption: | Configurable For 8 Soft Touch Buttons |
| Keypad Label: | Can Be Engraved Or Silk-screen | Installation Dimensions: | Standard 86 Boxes |
| High Light: | touch switch panel,smart light switch pane |
||

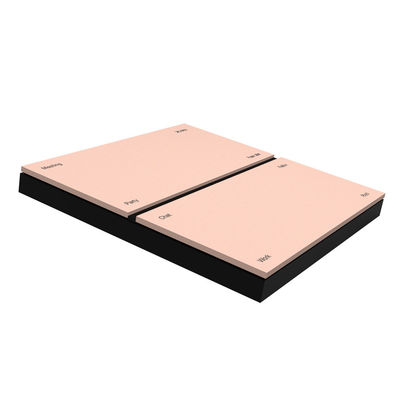

In Wall Smart Switch Description
Installed with standard-86 bottom box, supports seamless connection, matched with a variety of materials and colors panel, provides 8 keys each panel, Inductive backlight, reset touch button, with vibration effect, mature structure, stable performance, adopts(aluminium alloy) oxidation process.
| Button Events |
Programmable for short press, short press release, long press and long press release mode |
Communication Type |
RS 485 Bus Communication |
Signal Input |
A1 |
Bus interface |
1× bus |
Key type |
reset touch button, with vibration effect |
Backlight |
with infrared induction backlight |
In Wall Smart Switch Fectures:
1 Pressing “1” and “8” keys at the same time (about 5-10 seconds), all keys backlight in the panel will flash, and then click the button you want to modify, the button you chose will flash. Then, inputting code command in the software and sending it. The program will be overwritten successfully, the panel will automatically learn this command.
2 Through programming, each button can be configured to use “button events,” affording up to four separate functions per button by short press, short press release, long press and long press release key mode.
3. Clicking “HEX” , The code point into hexadecima
4. If you want to exit the learning mode, when all the buttons on the panel flash. Waiting for 10 seconds, the flashing will cancel automatically , and the panel exit the learning mode.
Application areas:
1. It can be used in commercials.
2. It can apply to buildings.
3. It can apply to education.
4. It can apply to architectural.
Package:
Different packing at optional:
1. Retailing Packing:
Neutral Carton Package
2. Bulking Packing:
Carton Package-Can save packing cost. Anti-static bag--Can protect electronic components from potential electrostatic hazards
3. Customized Packing
Can design and pack according to your requirement,such as colorful box,blister packing,sealed packing with your company information, bar code,ect. ( Discuss extral)
FAQ:
1. What is intelligent lighting control system?
A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.
2. What is the advantage compare with the traditional lighting control?
Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient
3. What Okystar can supply for you?
Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable. And we have technical team to support skype is okystar22 to you.
