Product Details:
Payment & Shipping Terms:
|
| Product Name: | 8 Channels Of 16A Switch Execution Module | Working Temperature: | 32° To 104° F (0° To 40° C) |
|---|---|---|---|
| Working Humidity: | 10% To 90% RH (non-condensing) | Dimmer Channels: | 8 |
| DC-NET Power Usage: | 5 Watts (0.20Amps @ 24 Volts DC) | Size: | 143*98*68mm |
| Highlight: | led light control module,interior lamp control module |
||
Description:

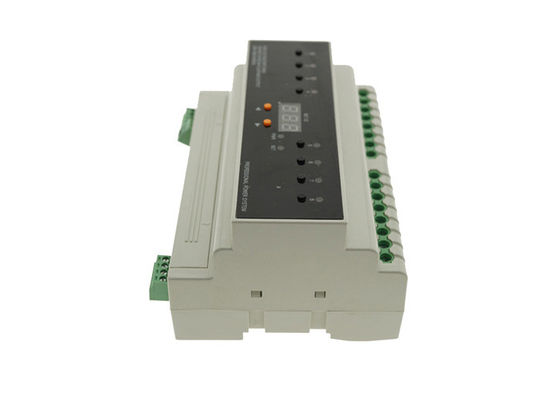

The DIN-REL8 is an 8-channel lighting control module designed to support switching of non-dimmable lighting and fans. A single model supports both 120 and 220-240 Volt applications. Each channel handles incandescent loads up to 10 Amps, fluorescent loads up to 5 Amps, and also 1/2 HP motors.
| 1 - 8: (8) sets of (2) captive screw terminals; Isolated Class 1 SPST relay switch circuits 1 - 8; |
| Relay Rating: 10 Amps incandescent, 5 Amps fluorescent, 16 Amps resistive, 0.5 HP @ 240 Volts AC (per channel); |
| NET: (2) 4-pin 3.81mm detachable terminal blocks, paralleled; |
| OVERRIDE: (1) 2-pin 3.81mm detachable terminal blocks, paralleled; |
|
Sensing input for external low-voltage contact closure |
| Activates override mode when a closure is present; |
Controls & Indicators:
Information Display:128*64 LCD display, display system configuration and status information
PWR:(1) Green LED, illuminates when DC power is applied to the NET port
NET:(1) Yellow LED, Indicates communication with an external control processor
BUTTON 1 – 6: (8) miniature pushbuttons for local control of devices
Package:
Different package at optional:
1. Retailing Package:Paper Package
2. Bulking Packing:Colorful Package
3. Retailing Box package design according to your requirement( Order > 1000PCS)
FAQ:
1. What is intelligent lighting control system?
A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.
2. What is the advantage compare with the traditional lighting control?
Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient
3. What Okystar can supply for you?
Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
