|Dimmer Channels:||4||Max Current:||5 Amps @ 120 To 240 Volts AC, 50/60 Hz|
|Dimming Mode:||0 - 10V||Maximum Wire Size:||12 AWG (2.5 Mm²)|
|Operating Temperature:||32° - 104°F (0℃ - 40℃)||Relative Huminity:||10% - 90% No Condensing|
|Load Type:||Incandescent, Fluorescent||Power Usage:||2.5 W|
|Weight:||350 G||Delivery Time:||5-7 Days|
10 volt dimmer switch,
0 to 10 dimming

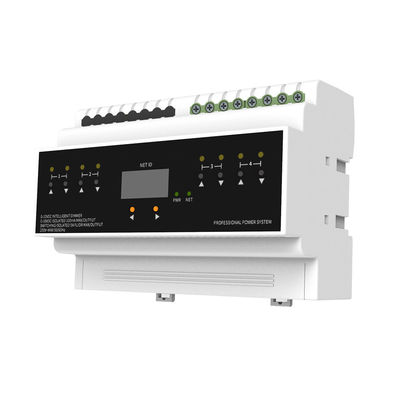

DC-NET 0-10V LED Dimmer Controller For Lighting Control System
The 0-10V Dimmer Module is an international standard Dimming Module widely developed all around the world. It has 4 isolated channel and the maximum load Rating is 5 Amps per channel, which can provide you with unique using experience.
If you have any problems, please contact: Whats APP: (+86) 178 9844 9880 Skype: okystar12
Description of 0-10v Dimmer in Smart Lighitng Control System
The DIN-FLV4 is a 0-10V Dimmer for Lighting Control System. It supports both 120 and 220 to 240 Volt applications. The DIN-FLV4 may also be used for switching of non-dimmable lighting loads up to 5 amps and 1/2 HP motors.
|OUTPUT 1 – 4||(2) 4-pin 3.81mm detachable terminal blocks comprising (4) isolated dimming control outputs|
|Voltage Control Range||0 to 10 Volts DC|
|Maximum Sink Current||100mA per channel|
|CONNECTOR||(4) sets of (2) captive screw terminals; Isolated Class 1 SPST relay switch circuits 1 – 4|
|Relay Rating||5 Amps maximum per channel|
|Maximum Wire Size:||12 AWG (2.5 mm²)|
|NET||(2) 4-pin 3.81mm detachable terminal blocks, paralleled; DC-NET slave port|
(2) 2-pin 3.81mm detachable terminal blocks, paralleled;
Sensing input for external low-voltage contact closure;
Activates override mode when a closure is present; Minimum Closure Rating: 10mA (per module) at 24 Volts
DIN Rail For Easy Installation of 0-10V LED Dimmer Controller:
An Apllied Example of 0-10V LED Dimmer
Different packing at optional:
1. Retailing Packing:
Neutral Carton Package
2. Bulking Packing:
Carton Package-Can save packing cost
Anti-static bag--Can protect electronic components from potential electrostatic hazards
3. Customized Packing
Can design and pack according to your requirement,such as colorful box,blister packing,sealed packing with your company information, bar code,ect. ( Discuss extral)
1. What is intelligent lighting control system?
A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.
2. What is the advantage compare with the traditional lighting control?
Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient
3. What Okystar can supply for you?
Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
