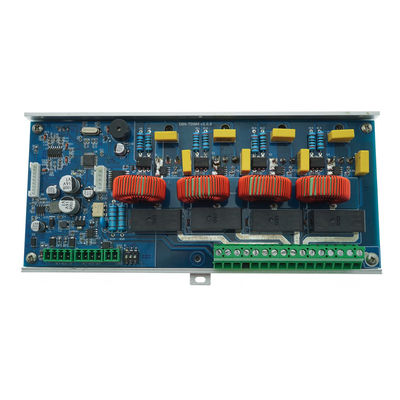

Forward Phase LED Dimmer Module , DIN Rail 220V Triac Dimmer For Led Lighting

Forward Phase LED Dimmer Module , DIN Rail 220V Triac Dimmer For Led Lighting
Forward Phase LED Dimmer Module , DIN Rail 220V Triac Dimmer For Led Lighting Forward Phase LED Dimmer Module , DIN Rail 220V Triac Dimmer For Led Lighting

Large Image :  Forward Phase LED Dimmer Module , DIN Rail 220V Triac Dimmer For Led Lighting

Product Details:
Place of Origin: CHINA
Brand Name: Okystar
Certification: CE
Model Number: DIN-TDM4
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $162.5, 1-10pcs; $154.38, 10-100pcs; $149.5, 100-300pcs; $143, 300-500pcs
Packaging Details: Carton package
Delivery Time: 3-5 day
Payment Terms: T/T, Western Union
Supply Ability: ≥1000 pcs per day
Detailed Product Description
Maximum Current/per Channel: 5 Amps Dimming Mode: TRIAC Dimming
Dimming Phase: Forward Phase Load Type: Incandescent, Fluorescent
Operating Temperature: 32° - 104°(0℃ - 40℃) Relative Huminity: 10% - 90% No Condensing
Support Protocol: DC-NET BUS Communication, Standard MODBUS RTU And DMX Inteface: Manual Switch, Contact IO, BUS/RS-485 Control Port
Weight: 350 G Delivery Time: 5-7 Days
High Light:

dimming controller


ac triac dimmer

DIN Rail 220V LED Dimmer Module TRIAC Dimmer For Lighting Control System


         TRIAC Forward phase digital dimming, single channel load 5A rated current, provides 4 circuits, each circuit can load 1100W (220V ~) devices.If there is anything we can do for you, please contact

                        Whats APP: (+86) 178 9844 9880  Skype: okystar12


Description of Triac LED Dimmer


      The DIN-TDM4 Supports Input Voltage :AC 110~240V 50/60 Hz, It provides manual switch, contact IO, BUS/RS-485 control port and Supports DC-NET BUS communication, standard MODBUS RTU, DMX, and Third party opening control protocol to control. Fully supports all central control systems on the market and


Connections of TRIAC Dimmer


DC-NET (2) 4-pin 3.81mm detachable terminal blocks, paralleled;

(1) 2-pin 3.81mm detachable terminal blocks;

Minimum Closure Rating: 10mA (per module) at 24 Volts

LIVE (2) Captive screw terminals[1], Red;Line power input
NEUTRAL (5) Captive screw terminals[1], Green
DIMMED LIVE 1 4 (4) Captive screw terminals[1], Red;
Ground (5) Captive screw terminals[1], green

Load Rating of TRIAC Module


Dimmer Channels


Max/Channel 5 Amps @ 120 to 277 Volts AC, 50/60 Hz
Module Total 10 Amps @ 120 to 277 Volts AC, 50/60 Hz;
Load Types Incandescent, Neon/Cold Cathode, Magnetic Low Voltage and Non-Dim Lighting


Controls & Indicator
NET ID (3) 7-Segment green LED digits to show
SETUP (2) recessed miniature pushbutton for enabling setup mode
PWR (1) PWR:(1) Green LED Light up when only powered by DC-NET
NET (1) Yellow LED, indicates communication with the control processor
LOADS 1 – 4 (8) Red LEDs and (8) miniature pushbuttons for status indication and local control of each channel


DIN Rail for Easy Installation of Triac Dimmer





Related Products of Light Dimmer



Different packing at optional:

1. Retailing Packing:
Neutral Carton Package
2. Bulking Packing:
Carton Package-Can save packing cost
Anti-static bag--Can protect electronic components from potential electrostatic hazards
3. Customized Packing
Can design and pack according to your requirement,such as colorful box,blister packing,sealed packing with your company information, bar code,ect. ( Discuss extral)
1. What is intelligent lighting control system?
A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.
2. What is the advantage compare with the traditional lighting control?
Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient
3. What Okystar can supply for you?
Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
