Payment & Shipping Terms:

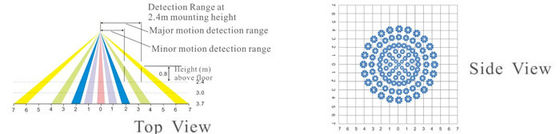

|The Height Of Installation:||2.4m||Detection Range:||8m Diameter|
|Power Supply:||24V DC||Power Consumption:||0.36 W|
|The Adjustment Range Of Ambient Light:||20Lux ~ 320Lux||Control Signal Output:||24V DC , 20mA|
|Relay:||Solid State , Form A(NC). 50mA , 30Vdc|
daytime running light control module,
interior lamp control module
24V DC 20mA 8m Diameter Simple Install HDIR Automation Sensor
■ PIR sensitivity adjustable
■ Environment-based, ambient light sensor can be flexibly set
■ Simple installation, self-contained spring piece, easy to press
on the false ceiling, if It is a true ceiling, with its own
decorativering, landscaping installation
■ Delay mode: 30s ~ 30min adjustable
■ LED indicator for testing purposes
Pyroelectric , 8-Element
|-10°C ~ +55°C|
|0% ~ 90% No Condensation|
110mm D x 56mm H
Different packing at optional:
1. Retailing Packing:
Neutral Carton Package
2. Bulking Packing:
Carton Package-Can save packing cost
Anti-static bag--Can protect electronic components from potential electrostatic
3. Customized Packing
Can design and pack according to your requirement,such as colorful box,blister
packing,sealed packing with your company information, bar code,ect. ( Discuss
1. What is intelligent lighting control system?
A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.
2. What is the advantage compare with the traditional lighting control?
Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient
3. What Okystar can supply for you?
Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
