Product Name: | PIR And Ultrasonic Sensor Switch | Customization: | Yes |
---|---|---|---|
Detection Diameter: | 8 M (Installation At 2.4 M Above The Ground) | Horizon Detection Degree:: | 120 ° |
Diameter: | 110 Mm (4.3 In) | Humidity: | 0% To 90% RH (non-condensing) |
Highlight: | led security lights motion sensor,exterior security lights motion sensor |
High-impact ABS 8M PIR And Ultrasonic Sensor Switch For Lighting System
PIR And Ultrasonic Sensor Switch Quick Details:
· Passive Infrared Detection
· Ultrasonic Detection
· Wall or ceiling mount occupancy sensor
· Dual-technology motion detection
· Surface mounted or flush mounted

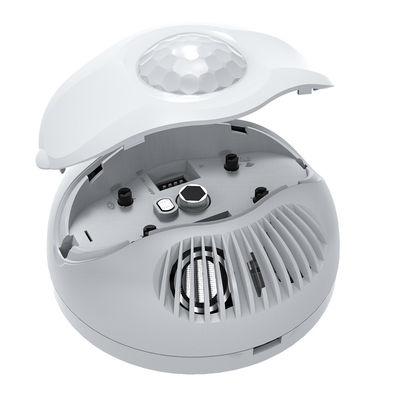

IQ-SM01 is a Dual-technology Motion Sensor. Mounted at a height of 2.4 m,this sensor provides full circular 8m diameter detection for minor motion, e.g.hand movement of people in that area. IQ-SM01 can be surface mounted or flush mounted for an attractive, un-obstructive appearance.
PIR And Ultrasonic Sensor Switch Features:
Power Supply | 16-28V DC |
Current Consumption | Current Consumption |
Power Usage | 1 Watt |
Multi-Tech Mode | Default mode, both PIR & Ultrasonic Work |
Ultrasonic Adjustment | minimum→maximum( Clockwise) |
Infrared Adjustment | minimum→maximum(Clockwise) |
Mounting Choice
The sensor may be mounted either in a drop- ceiling panel, or on a solid ceiling. In a drop- ceiling panel, two metal springs serve to retain the sensor in the panel. On a solid ceiling, the sensor is mounted on a base ring (supplied with the sensor).The base ring is fastened to the ceiling by means of three screws.
FAQ:
1. What is intelligent lighting control system?
A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.
2. What is the advantage compare with the traditional lighting control?
Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient
3. What Okystar can supply for you?
Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable. And we have technical team to support skype is okystar22 to you.
