High Voltage Smart Home D Light Control Module 8 Channels Supports Multi Interface

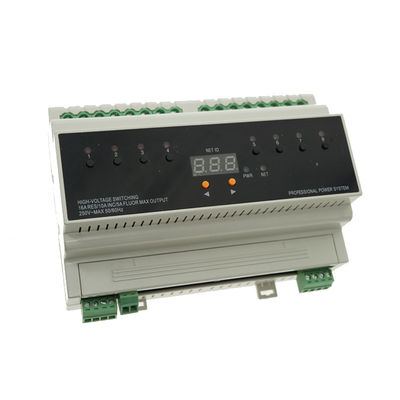

The DIN-REL8 is an 8-channel lighting control module designed to support switching of non-dimmable lighting and fans. A single model supports both 120 and 220-240 Volt applications. Each channel handles incandescent loads up to 10 Amps, fluorescent loads up to 5 Amps, and also 1/2 HP motors. Supports multiple controlling protocols such as DMX, ModBus RTU, ModBus ASCII, and third-party protocols Neon/Cold cathode, fluorescent, motors. It can be widely applied in commertial and housing lighting system.



The DIN-REL8 is designed to snap onto a standard DIN rail for installation in a wall mount enclosure. Wiring connections are made using screw terminals positioned along the top and bottom, clearly accessible from the front for easy installation and servicing. All setup controls and indicators are positioned on the center front panel, the DIN-REL8's front panel stays accessible while the connection are concealed.





Connector	(8) sets of (2) captive screw terminals; IsoClass 1 SPST relay switch circuits 1 - 8
Relay Rating	10 Amps incandescent, 5 Amps fluorescent, 16 Amps resistive, 0.5 HP @ 240 Volts AC (per channel)
NET	(2) 4-pin 3.81mm detachable terminal blocks, paralleled
OVERRIDE	(1) 2-pin 3.81mm detachable terminal blocks, paralleled;Sensing input for external low-voltage contact closure; Activates override mode when a closure is present.



Control & Indicatior



Indicator light & button	(8) Red LEDs and (8) miniature pushbottons for status indication and local control of rach channel
NET ID	(3) 7-Segment green LED digits and (2) miniature pushbuttons for setting DC-NET ID; digits also display output levels
PWR	(1) Green LED, illuminates when DC power is applied to the NET port
NET	(1) Yellow LED, indicates communication with the control processor
RESET	(1) Recessed miniature pushbutton, resets internal processor





Environment



Temperature	32° to 104°F (0° to 40°C)
Humidity	10% to 90% RH (non-condensing)
Heat Dissipation	20 BTU/hr
Weight	400 g
