Home Automation Processor Centralized Control System Smart RS-485 Communication Ports

Home Automation Processor Centralized Control System Smart RS-485 Communication Ports
Home Automation Processor Centralized Control System Smart RS-485 Communication Ports Home Automation Processor Centralized Control System Smart RS-485 Communication Ports Home Automation Processor Centralized Control System Smart RS-485 Communication Ports Home Automation Processor Centralized Control System Smart RS-485 Communication Ports Home Automation Processor Centralized Control System Smart RS-485 Communication Ports

Large Image :  Home Automation Processor Centralized Control System Smart RS-485 Communication Ports

Product Details:
Place of Origin: CHINA
Brand Name: Okystar
Model Number: DIN-CP1
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $134.43, 1-10pcs; $127.71, 11-100pcs; $123.68, 100-300pcs; $118.30, 300pcs-500pcs.
Packaging Details: Carton Package
Delivery Time: 3-5 Work Day
Payment Terms: T/T, Western Union
Supply Ability: ≥1000 pcs per day
Detailed Product Description
CPU: 32-bit ARM Microprocessor Connectors: Equipped With (4) I/O Port; (5)RS-485 Port; (1)8-wire RJ45 Port.
Power Requirement: 2 Watts (0.08 Amps @ 24 Volts DC) Information Display: 128*64 LCD Display
Working Temperature: 32° To 104°F (0° To 40°C) Weight: 250g
High Light:

central control system

,

automated control systems

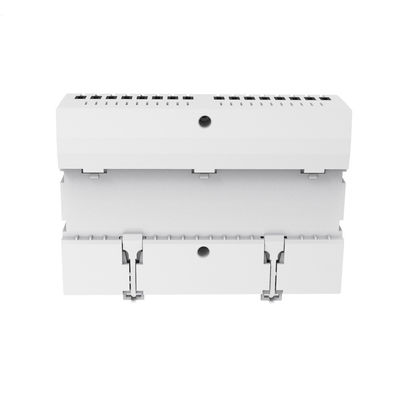

Automation Processor Supports RS-485 And Snap Onto Din Rail Used In Home



Description:



The DIN-CP1 is an intelligent control processor designed for intelligent lighting and automation applications, which can be applied in residential and commercial building. Din rail mounting enables modular installation alongside OKYSTAR DIN rail lighting and automation control modules and other third-party DIN rail mountable devices. The processor equipped with 4 pcs IO ports and 5 pcs RS-485 Bus communication ports. Ethernet network communication port supports 8pcs TCP and 8pcs UPD ports. The processor is designed to snap onto a standard DIN rail for installation in a wall mount enclose or mounted on a wall panel. Another advantage about our processor is System integration. The DIN-CP1 provides for the integration of no-OKYSTAR devices and subsystems through a host of control system In order to achieve the integration of all kinds of devices.



Advantage:



The DIN-CP1 is a intelligent control processor designed for intelligent lighting and automation applications. DIN rail mounting enables modular installation alongside OKYSTAR DIN rail lighting and automation control modules and other third-party DIN rail mountable devices.

The DIN-CP1 includes LCD display screen,button,which is able to Inquiry the system power state,system configuration parameters.

The DIN-CP1 includes 1pcs built-In ethernet network communica tion port, 4pcs IO control ports, 5pcs RS-485 BUS communication ports.

Ethernet network communication ports support 8pcs TCP and 8pcs UDP ports connection to control third-party devices . Each TCP/UDP connection can be configured as sever or client way.

Ethernet network communication port provides an upward connection TCP/UDP port, which can connect the computer , central
control system, compatible with AMX, Crestron, C4 and all third-party control system network connection.

Ethernet network communication port provides an upward connection TCP/UDP port, which can connect the computer , central
control system, compatible with AMX, Crestron, C4 and all third-party control system network connection.

The DIN-CP1 has 5-way RS-485 BUS communication port, supports DC-Net BUS protocol, DMX protocol, ModBUS RTU protocol, ModBUS Ascii protocol, third-party protocols and other control protocols; it supports multiple types of control panels, sensor access to control third-party equipment

The IO control port supports rising edge, falling edge, high level or low level mode trigger.

Use html web configuration programming method, the program ming interface is stored in the host. You can make configuration programming to control the host by login in PC web browser. The entire programming process is simple and intuitive, which breaks the traditional written in the programming software programming language / graphical programming way, minimizes the programming capabilities of device use RS and ensures the flexibility of device applications.

The DIN-CP1 supports up to 128 devices connection, management and controlling. The device types include DC-Net BUS devices, DMX devices, ModBUS Input/Output devices, and other third-party Input/Output devices.

The DIN-CP1 built-in calendar clock, supports 10 groups scheduled task operations.

Intelligent processor chart

Home Automation Processor Centralized Control System Smart RS-485 Communication Ports 0



Connectors



I/O 1 – 4
(1) 5-pin 3.81mm detachable terminal block comprising (4) digital input/output ports (referenced to GND);
Digital Input
Rated for 0-24 Volts DC, input impedance 20k ohms, logic threshold 1.25 Volts DC
Digital Output
250 mA sink from maximum 24 Volts DC, catch diodes for use with “real world” loads
COM 1 – 5
(5) 4-pin 3.81mm detachable terminal blocks Bidirectional RS-485 ports;
      Up to 115.2k baud
LAN
(1) 8-wire RJ45 with 2 LED indicators; 10BaseT Ethernet port; Green LED
indicates link status;Yellow LED indicates Ethernet activity



Control & Indicators

Information Display
128*64 LCD display, display system configuration and status information
PWR
(1) Green LED, illuminates when DC power is applied to the NET port
NET
(1) Yellow LED, Indicates communication with an external control processor
BUTTON 1 – 6
(8) miniature pushbuttons for local control of devices



Different packing at optional:


1. Retailing Packing:
Neutral Carton Package

2. Bulking Packing:
Carton Package-Can save packing cost
Anti-static bag--Can protect electronic components from potential electrostatic hazards

3. Customized Packing
Can design and pack according to your requirement,such as colorful box,blister packing,sealed packing with your company information, bar code,ect. ( Discuss extral)



FAQ:



1. What is intelligent lighting control system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.



2. What is the advantage compare with the traditional lighting control?



Improve energy efficiency

Reduce maintenance cost

Easy operation and more convenient



3. What Okystar can supply for you?



Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
