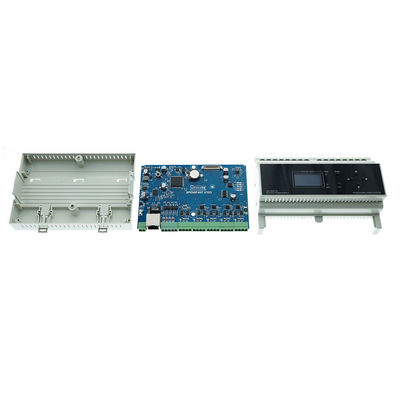

Lighting 24V DC DIN Rail Automation Controller 143mm Length For Smart Home

Lighting 24V DC DIN Rail Automation Controller 143mm Length For Smart Home
Lighting 24V DC DIN Rail Automation Controller 143mm Length For Smart Home
video play

Large Image :  Lighting 24V DC DIN Rail Automation Controller 143mm Length For Smart Home

Product Details:
Place of Origin: China
Brand Name: OKYSTAR
Certification: CE,ROHS
Model Number: DIN-CP1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton package
Delivery Time: 3-5 work day
Payment Terms: Western Union, T/T, L/C
Supply Ability: 1000 pcs per day
Detailed Product Description
Product Name: Automation Controller IO Control Ports: 4pcs
RS-485 Ports: 5pcs Length: 143mm
Temperature: 32° To 104°F (0° To 40°C) Humidity: 10% To 90% RH (non-condensing)
High Light:

daytime running light control module


interior lamp control module

Lighting 24V DC DIN Rail Automation Controller For Smart Home


Description of Automation Controller​:


>The DIN-CP1 includes LCD display screen,button,which is able to Inquiry the system power state,system configuration parameters.

>Use html web configuration programming method, the programming interface is stored in the host. You can make configuration programming to control the host by login in PC web browser. The entire programming process is simple and intuitive, which breaks the traditional written in the programming software programming language / graphical programming way, minimizes the programming capabilities of device use RS and ensures the flexibility of device applications.

>The DIN-CP1 supports up to 128 devices connection, management and controlling. The device types include DC-Net BUS devices, DMX devices, ModBUS Input/Output devices, and other third-party Input/Output devices.



Specifications of Automation Controller​:


Input voltage DC24V
Digital Output 250 mA sink from maximum 24 Volts DC, catch diodes for use with “real world” loads
LAN (1) 8-wire RJ45 with 2 LED indicators; 10BaseT Ethernet port; Green LED indicates link status;Yellow LED indicates Ethernet activity
I/O 1 – 4 (1) 5-pin 3.81mm detachable terminal block comprising (4) digital input/output ports (referenced to GND);
COM 1 – 5 (5) 4-pin 3.81mm detachable terminal blocks Bidirectional RS-485 ports; Up to 115.2k baud


Lighting 24V DC DIN Rail Automation Controller 143mm Length For Smart Home 0

Automation Controller Quick Details:


The DIN-CP1 is designed to snap onto a standard DIN rail for installation in a wall mount enclosure or mounted on a wall panel. Wiring connections are made using detachable screw terminals positioned along the top and bottom, clearly accessible from the front for easy installation and servicing. All setup controls and connections are positioned on the center front panel. When installed in an enclosure utilizing 45 mm cutouts, the DIN-CP1’ s front panel stays accessible while all other connections are concealed.


Automation Controller Specifications


Information Display 128*64 LCD display, display system configuration and status information
DC-NET Power Usage 2 Watts (0.08 Amps @ 24 Volts DC) when line power is not available
BUTTON 1 – 6 (8) miniature pushbuttons for local control of devices




1. What is intelligent lighting control system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.


2. What is the advantage compare with the traditional lighting control?


Improve energy efficiency

Reduce maintenance cost

Easy operation and more convenient


3. What Okystar can supply for you?


Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
