| Product Name: | 8 Channel High-Voltage Switch | Installation: | DIN Rail |
|---|---|---|---|
| Humidity: | 10% To 90% RH (non-condensing) | Heat Dissipation: | 20 BTU/hr |
| Weight: | 400 G | Dimensions: | 143*98*68mm |
| Highlight: | led dimmer module,dali dimmer module |
||
Lighting Control Solution 24VDC Non Dimmable 8 Channel High-Voltage Switch
8 Channel High-Voltage Switch Quick Details:
| DC-NET | The DIN-REL8 communicates with a DIN-CP1 automation processor, or other third-party control syste |
| PWR | (1) Green LED, illuminates when DC power is applied to the NET port |
| NET | (1) Yellow LED, indicates communication with the control processor |
| RESET | (1) Recessed miniature pushbutton, resets internal processor |
| Power Requirements | DC-NET Power Usage: 5 Watts (0.20Amps @ 24 Volts DC) |
8 Channel High-Voltage Switch Features:
The DIN-REL8 is an 8-channel lighting control module designed to support switching of non-dimmable lighting and fans. A single model supports both 120 and 220-240 Volt applications. Each channel handlesincandescent loads up to 10 Amps, fluorescent loads up to 5 Amps, and also 1/2 HP motors.
An override input is provided to allow an external contact closure to momentarily override the control system program and set each channel

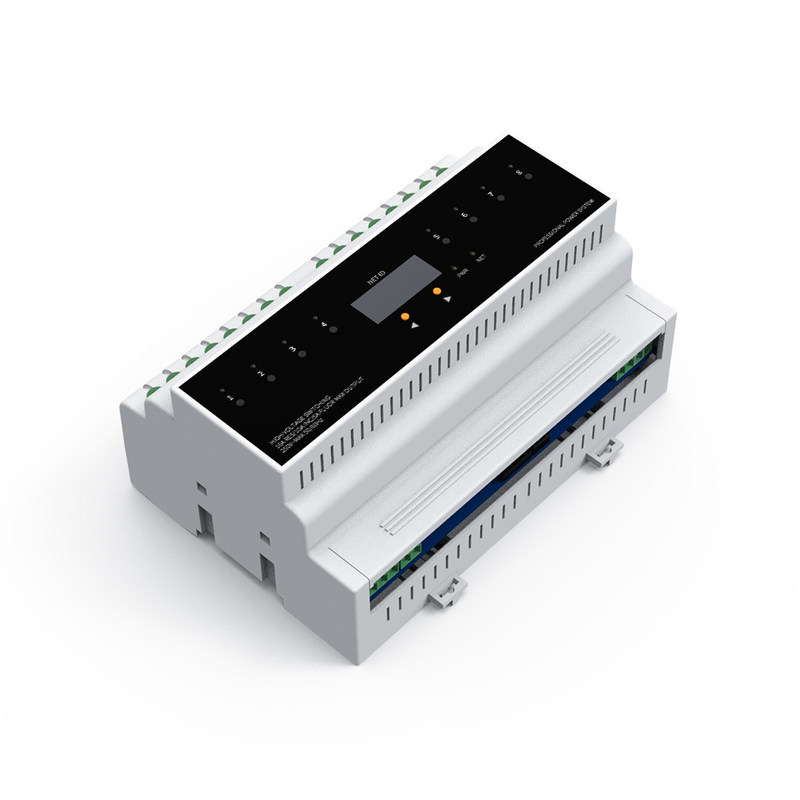

8 Channel High-Voltage Switch Photo:
FAQ:
1. What is intelligent lighting control system?
A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.
2. What is the advantage compare with the traditional lighting control?
Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient
3. What Okystar can supply for you?
Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable. And we have technical team to support skype is okystar22 to you.
Our factory/manufacturer located in Shenzhen,china, Which is focus on the made in china high quality products.
