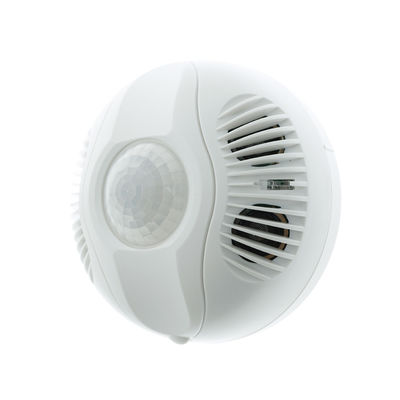

PIR Hotel Room Lighting Control System

PIR Hotel Room Lighting Control System
PIR Hotel Room Lighting Control System PIR Hotel Room Lighting Control System

Large Image :  PIR Hotel Room Lighting Control System

Product Details:
Place of Origin: China
Brand Name: Okystar
Model Number: IQ-SM01
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Carton Package
Delivery Time: 3-7 Work days
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Power Supply: 24V DC Power Consumption: 0.36 W
The Adjustment Range Of Ambient Light: 20Lux ~ 320Lux Relay: Solid State , Form A(NC). 50mA , 30Vdc
Control Signal Output: 24V DC , 20mA The Height Of Installation: 2.4m
Detection Range: 8m Diameter
High Light:

20mA remote lighting control system


20mA commercial lighting control systems


PIR Hotel Room Lighting Control System

Ceiling Mount DC 24V PIR And Ultrasonic Lighting Control Sensor


Description of Sensor

Wall mounted Sensor named Okystar IQ-SM01. It incluses PIR sensor, Light sensor, Ultrasonic sensor. It can satisfy different requirements according to different logics.


Parameters of Sensor

■ Infrared sensitivity adjustable
■ Environmental, ambient light sensor can be flexibly set
■ Easy to install, built-in spring piece, easy to press on the false ceiling, if It is a true ceiling, with its own decorativering,      landscaping installation
■ Delay mode: 30s ~ 30min adjustable
■ LED indicator for testing purposes



Features of Sensor


Control Signal Output


24V DC , 20mA

Relative Humidity


0% ~ 90% No Condensation


Infrared Sensor


Pyroelectric , 8-Element



110mm D x 56mm H


Working Humidity
-10°C ~ +55°C


Relative Humidity
0% ~ 90% No Condensation


4 in 1:

Ultrasonic sensor:The 8-meter detection range allows the sensor to detect motion from a far and transmit a signal to activate a device. Built-in ultrasonic sensor, the sensor also features a light sensor. The LUX data can be used to automatically adjust a room’s lighting.



Light sensor: The LUX data can be used to automatically adjust a room’s lighting, or control a room’s shading solution. This feature is of particular use in libraries, hospitals, and offices.



PIR sensor (Infrared sensor): If the sensor in a room detects movement, it will active the sensor.


Timer Sensor: The relay time of the Timer Sensor can be set by the users’ demand. It’s easy to adjust it in the range of 30 seconds to 30 minutes.

PIR Hotel Room Lighting Control System 0





Different packing at optional:
1. Retailing Packing:
Neutral Carton Package

2. Bulking Packing:
Carton Package-Can save packing cost
Anti-static bag--Can protect electronic components from potential electrostatic

3. Customized Packing
Can design and pack according to your requirement,such as colorful box,blister
packing,sealed packing with your company information, bar code,ect. ( Discuss





1. What is intelligent lighting control system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.


2. What is the advantage compare with the traditional lighting control?


Improve energy efficiency

Reduce maintenance cost

Easy operation and more convenient


3. What Okystar can supply for you?


Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
