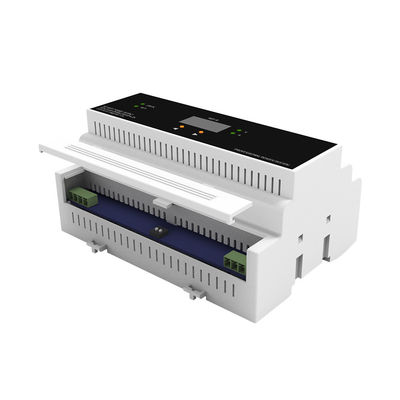

Power Supply Dali Lighting Control Module 35mm DIN Rail For Project Application

large.img.alt
large.img.alt
video play

Large Image :  Power Supply Dali Lighting Control Module 35mm DIN Rail For Project Application

Product Details:
Place of Origin: China
Brand Name: OKYSTAR
Certification: CE
Model Number: DIN-PWS60
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $40-60/pcs
Packaging Details: 1pcs/box, withing 14kg for DIN Rail DALI Lighting Control System
Delivery Time: 2-7 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 2000pcs/month
Detailed Product Description
Product Name: DIN Rail 60W 24V DC Power Supply Module Supply Input: 24VDC
DC-NET Power: 60 Watts Feature: Smart Lighting Control
Warranty: 1 Years Application: Home/building Automation Lighting Control System
High Light:

led lighting control panel

,

lamp control module

Home / Building Lighting Controls 60 Watts Power Supply Installation on 35mm DIN Rail








DIN Rail Power Supply Controller Specifications



Output Rating
60 Watts (2.5 Amps) at 24 Volts DC, regulated, limited power source

Line Power/Mains

200 VA (2 Amps max.) @ 110-250 Volts AC, 50/60 Hz

Power Consumption

70 Watts at full rated output

100-277VAC 50/60Hz

(2) Set of (3) captive screw terminals; Line power input and ground

FUSE

(1) AC input fuse, T3.15AH;4x8 mm, 250 Volts, 3.15 Amps, time-lag, ceramic cartridge

NET

(2) 4-pin 3.81 mm detachable terminal blocks, paralleled;DC-NET power output ports with data pass-through



Ripple/Noise
<1%
Efficiency
85%

Temperature

32° to 104° F (0° to 40° C)
Humidity
10% to 90% RH (non- condensing)



DIN Rail Power Supply Controller Application

Power Supply Dali Lighting Control Module 35mm DIN Rail For Project Application 0



Automation Lighting Control System Applied in: stadium, school, hospital, airport, metro, church, office, commercial building, parking lot/car park/parking area, outdoor spaces, foyer, lobby, elevator hall, public walkway, bathroom, underground garage, meeting room, villa, home lighting, plazas, shopping malls, public building, industrial plants and factories, etc





DIN Rail Power Supply Controller Features

The DIN-PWS60 is a 60 Watt DC-NET Power Supply module. Two DC-NET power ports are provided to supply power for the whole lighting control system. It designed to snap onto a standard DIN rail for easy installation in a wall-mount enclosure.
The DIN-PWS60 communicates with a DIN-CP1 Automation Processor, or other Third-Party control systems, via the DC-NET control network A pair of DC-NET ports on the DIN-PWS60 allows for easy daisy-chaining of several DIN Rail Series automation control modules.





Different packing at optional:


1. Retailing Packing:
Neutral Carton Package

2. Bulking Packing:
Carton Package-Can save packing cost
Anti-static bag--Can protect electronic components from potential electrostatic hazards

3. Customized Packing
Can design and pack according to your requirement,such as colorful box,blister
packing,sealed packing with your company information, bar code,ect. ( Discuss extral)




FAQ
1. What is intelligent lightincontrol
g system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.

2. What is the advantage compare with the traditional lighting control?

Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient


3. What Okystar can supply for you?

Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
