Residential Single Room Dali Lighting Control Module 24VDC Supply Input High Flexibility

large.img.alt
large.img.alt
video play

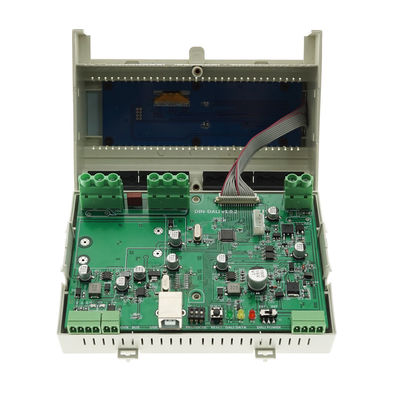

Large Image :  Residential Single Room Dali Lighting Control Module 24VDC Supply Input High Flexibility

Product Details:
Place of Origin: China
Brand Name: OKYSTAR
Certification: CE, ROSH
Model Number: DIN-DALI
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $140-190/pcs
Packaging Details: 1pcs/box, withing 14kg for DIN Rail DALI Lighting Control System
Delivery Time: 2-7 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 2000pcs/month
Detailed Product Description
Product Name: DIN Rail DALI Controller / Dimmer/Module/Actuator Supply Input: 24VDC
COM: RS-485 DC-NET Power: 2 Watts
Material: Polycarbonate Color: Light Gray
Feature: Smart Lighting Control NET: 4-pin 3.81mm Detachable Terminal Blocks, Paralleled
Warranty: 1-2 Years Application: Home/building Automation Lighting Control System
Minimum Closure Rating: 10mA (per Module) At 24 Volts DALI Interface: (1) 2-pin 7.62mm Terminal Blocks Each Channel Controls A Single DALI Loop (up To 64 Ballasts);
COMPUTER: USB Type B Female, USB 1.1 Computer Console Port
High Light:

led lighting control panel

,

lamp control module

DALI Controller Designed for residential or single room commercial or industrial applications






Smart Lighting Control System Solution



1. Cost and time advantages in planning, installation, commissioning and reprogramming
2. Improves comfort.
3. High flexibility, extense function at any time

4. DIN rail components and surface mounted devices

5. Input and output combinated various devices.
6. All loads in the room (lights, blinds, heating, etc.) can be controlled using a central device



Residential Single Room Dali Lighting Control Module 24VDC Supply Input High Flexibility 0



DIN Rail DALI Master Controller Specifications



NET

(2) 4-pin 3.81mm detachable terminal blocks, paralleled

OVERRIDE

(1) 2-pin 3.81mm detachable terminal blocks.Sensing input for external low-voltage contact closure;
Activates override mode when a closure is present, forces each ballast into its defined “System Failure Level”

Minimum Closure Rating

10mA (per module) at 24 Volts

DALI Interface

(1) 2-pin 7.62mm terminal blocks
Each channel controls a single DALI loop (up to 64 ballasts);

COMPUTER

1) USB Type B female, USB 1.1 computer console port

TEST

(6) miniature pushbuttons for testing on/off and dim up/down for all attached ballasts in channel
DALI POWER
(1) 2-position switch, sets DALI power between internal (INT) and external (EXT);
When set to “INT” DALI uses power supplied by the DIN-DALI;
When set to “EXT” DALI uses power provided by external power supply (not included)
LCD Panel
(1) LCD Display Panel for Used for displaying various equipment information and operation status information

PWR

(1)Green LED, illuminates when DC power is a applied to the NET port

NET

(1)Yellow LED, Indicates communication with an external control processor



DIN Rail DALI Master Controller Application

Residential Single Room Dali Lighting Control Module 24VDC Supply Input High Flexibility 1





> Support a DALI bus, most allow linking 64 DALI lighting equipment
> With USB and DC-NET(RS-485) communication interface
> Scan equipments, meet the requirement of automatic address assignment of DALI agreement and there are 3 ways to assign address
> All the parameters of the parameters table of DALI agreement can be read or set.
> Support Setting / reading by group;
> Integrated DALI power supply
> Support Scene values can be set/read.
> 8M wide DIN rail mounting


Being the intelligent lighting international standard bus agreement, DALI is widely applied in indoor lighting. DALI bus can be connected with a maximum of 64 devices, including 16 groups and 16 scenes. It also has some function setting parameters which give DALI more application flexibility and meet the demands for different occasions more easily. There must be a DALI bus to set the parameters for DALI lamps, so Our company design the DIN-DALI DALI bus which has DALI Tools software, powerful functions and widely applied in illumination engineering and debugging.




DIN Rail DALI Master Controller Installation


The DIN-DALI is designed to snap onto a standard DIN rail for installation in a wall mount enclosure. Wiring connections are made using screw terminals positioned along the top and bottom, clearly accessible from the front for easy installation and servicing. All setup controls and indicators are positioned on the center front panel. When the DIN-DALI is installed in an enclosure utilizing 45 mm cutouts, the front panel stays accessible while the connections are concealed.





Residential Single Room Dali Lighting Control Module 24VDC Supply Input High Flexibility 2

 One DALI Channels

The one-channel DALI outputs on the DIN-DALI makes controlling up to 64 individual DALI ballasts easy. The Digital Addressable Lighting Interface (DALI) is a protocol used for the control of lighting in buildings and is found on ballasts available from many manufacturers. Since it offers ballast-level control, lighting loads powered from the same feed can be controlled individually. DALI is a great choice for retrofit lighting systems because it does not require changes in line voltage wiring. Likewise, DALI provides ultimate flexibility by allowing reconfiguring of zones after a system is installed.


Company Profile

Okystar Technology Co., Ltd is subsidiary of Okystar Technology Group Co., Ltd, which holds 4 subsidiary companies and more than 100 skilled workers,5. technicians.Okystar Tech Co.,Ltd was built in 2004.We mainly manufacture and export lighting control system including DALI, 0-10V, Leading / Trailing Edge Dimmer, Programmable Touch Panel and etc.
After 10 years development, our company has grown into a large high-tech group corporation integrated industry, technology and trading. With electronic information industry as our main business, we keep being top 10 in the board, shield, sensor, modules. Now we launch new lighting control system module which will keep our competitiveness in the market.

Residential Single Room Dali Lighting Control Module 24VDC Supply Input High Flexibility 3Residential Single Room Dali Lighting Control Module 24VDC Supply Input High Flexibility 4


Exhibition
Residential Single Room Dali Lighting Control Module 24VDC Supply Input High Flexibility 5



DIN Rail DALI Master Controller Packing & Shipping

Residential Single Room Dali Lighting Control Module 24VDC Supply Input High Flexibility 6

Residential Single Room Dali Lighting Control Module 24VDC Supply Input High Flexibility 7


FAQ
1. What is intelligent lighting
control system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.

2. What is the advantage compare with the traditional lighting control?

Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient


3. What Okystar can supply for you?

Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
