RS485 Dali Lighting Control Module

small.img.alt small.img.alt

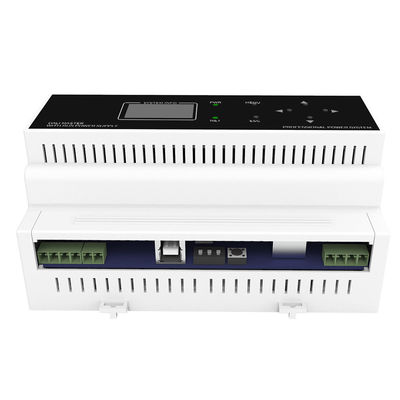

Large Image :  RS485 Dali Lighting Control Module

Product Details:
Place of Origin: China
Brand Name: OKYSTAR
Certification: CE,ROHS
Model Number: DIN-DALI
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton package
Delivery Time: 3-5 work day
Payment Terms: Western Union, T/T, L/C
Supply Ability: 1000 pcs per day
Detailed Product Description
Product Name: Dali Lighting Controller Input Voltage: DC24V
Working Humidity: 10% To 90% RH (non-condensing) DALI Power Output: 250Ma
Dimensions: 143mm(Length)*98mm(Width)*68mm*(Height) Weight: 300g
High Light:

DC24V lamp control module


DC24V headlight control module


RS485 Dali Lighting Control Module

DC24V RS485 Modbus Smart Home Devices Dali Lighting Controller


Description of Dali Lighting Controller:


Being the intelligent lighting international standard bus agreement, DALI is widely applied in
indoor lighting. DALI bus can be connected with a maximum of 64 devices, including 16 groups and 16 scenes. It also has some function setting parameters which give DALI more application flexibility and meet the demands for different occasions more easily. There must be a DALI bus to set the parameters for DALI lamps, so Our company design the OKYSTAR DALI bus which has DALI Tools software, powerful functions and widely applied in illumination engineering and debugging.



Specifications of Dali Lighting Controller:


Input voltage DC24V
Connect USB RS-485
Operating temperature 0-70℃
power consumption <=10W
DALI power output 250Ma


RS485 Dali Lighting Control Module 0

Dali Lighting Controller Fectures:


1.Support a DALI bus, most allow linking 64 DALI lighting equipment .

2.Scan equipments, meet the requirement of automatic address assignment of DALI agreement and there are 3 ways to assign address. 3.Broadcast equipments, control group or single address.

4.All the parameters of the parameters table of DALI agreement can be read or set.


Dali Lighting Controller applications:


1. It can use in residentials

2. It can use in commercial

3. It can use in industrial

4. It can use in architectural




1. What is intelligent lighting control system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.


2. What is the advantage compare with the traditional lighting control?


Improve energy efficiency

Reduce maintenance cost

Easy operation and more convenient


3. What Okystar can supply for you?


Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
