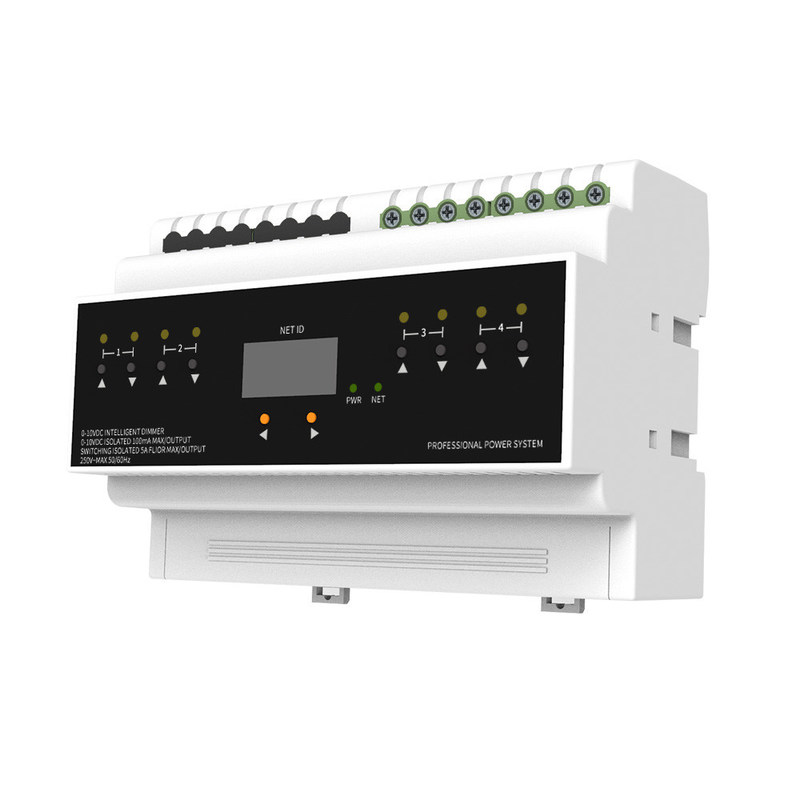

RS 485 0 To 10 Dimmer

RS 485 0 To 10 Dimmer
RS 485 0 To 10 Dimmer RS 485 0 To 10 Dimmer

Large Image :  RS 485 0 To 10 Dimmer

Product Details:
Place of Origin: China
Brand Name: Okystar
Model Number: DIN-FLV4
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: carton package
Delivery Time: 3-7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: ≥1000 perday
Detailed Product Description
Temperature: 32° To 104°F (0° To 40°C) Humidity: 10% To 90% RH (non-condensing)
Voltage Control Range: 0 To 10 Volts DC Dimmer Channels: 4
Maximum Per Channel: 5 Amps @ 120 To 240 Volts AC, 50/60 Hz
High Light:

1 10 volt led dimmer


240 Volt 0 to 10 dimming


RS 485 0 To 10 Dimmer

0-10V DIN-RAIL RS-485 DC-NET Dimming Controller Lighting Control System


Description of 4 Channels of 0-10V Dimmer Module

It (The DIN-FLV)  is a 4-channel light control module which designed to dim 0-10 Volt drivers and ballasts. One single
model supports both 120 and 220 to 240 Volt applications.The DIN-FLV4 can also be used for switching of non-dimmable lighting loads up to 5 amps[1] and 1/2 HP motors.


Features of 0-10V Dimmer Module











Dim Load Types
0-10 Volt fluorescent ballast or LED driver (4-wire); Maximum of 40 dimmable ballasts/drivers
Switch Load Types[1]
Incandescent, magnetic low-voltage, electronic low-voltage, neon/cold cathode, fluorescent, motors
DIN Rail Installation
The DIN-FLV4 is designed to snap onto a standard DIN rail for installation in a wall mount enclosure. Wiring connections
are made using screw terminals positioned along the top and bottom, clearly accessible from the front for easy installation
and servicing. All setup controls and indicators are positioned on the center front panel. When installed in an enclosure uti
lizing 45 mm cutouts, the DIN-FLV4’ s front panel stays accessible while the connections are concealed.
RS 485 0 To 10 Dimmer 0


Different packing at optional:
1. Retailing Packing:
Neutral Carton Package

2. Bulking Packing:
Carton Package-Can save packing cost
Anti-static bag--Can protect electronic components from potential electrostatic

3. Customized Packing
Can design and pack according to your requirement,such as colorful box,blister
packing,sealed packing with your company information, bar code,ect. ( Discuss





1. What is intelligent lighting control system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.


2. What is the advantage compare with the traditional lighting control?


Improve energy efficiency

Reduce maintenance cost

Easy operation and more convenient


3. What Okystar can supply for you?


Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
