RS 485 Automation Dimming Processor Eco - Friendly For Smart Lighting Controls

large.img.alt
large.img.alt
video play

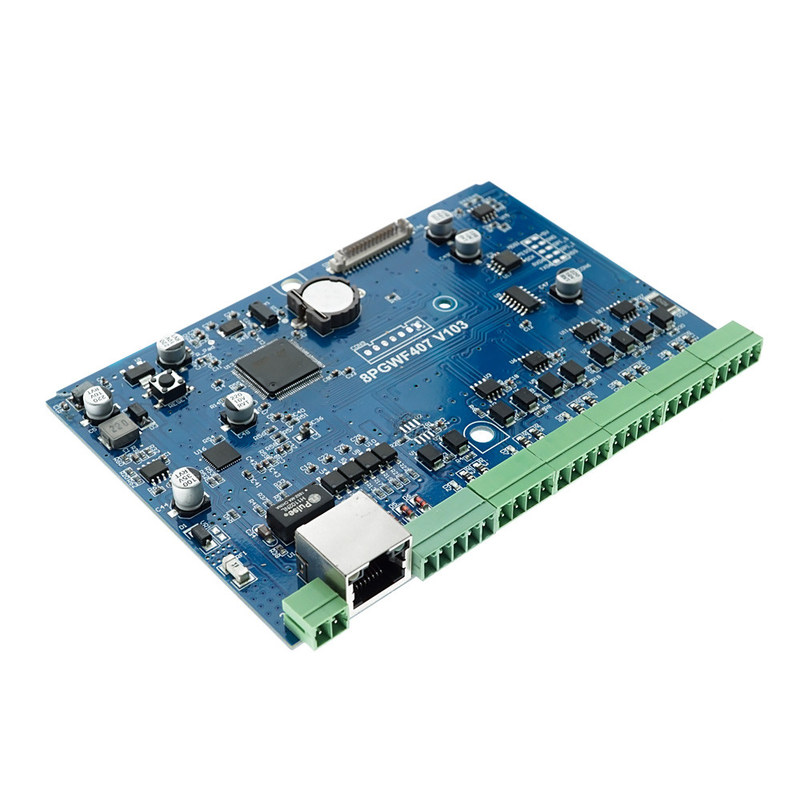

Large Image :  RS 485 Automation Dimming Processor Eco - Friendly For Smart Lighting Controls

Product Details:
Place of Origin: China
Brand Name: OKYSTAR
Certification: CE, ROSH
Model Number: DIN-CP1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $100-180/pcs
Packaging Details: 1pcs/box
Delivery Time: 2-7 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000pcs/month
Detailed Product Description
Product Name: DIN Rail Automation Processor Supply Input: 24VDC
COM: RS-485 DC-NET Power: 2 Watts
Environment: Eco-friendly Feature: Smart Lighting Control
I/O 1-4: 5-pin 3.81mm Detachable Terminal Block Comprising Warranty: 1 Years
Application: Home/building Automation Lighting Control System
High Light:

daytime running light control module

,

interior lamp control module

Smart Lighting Controls Automation Dimming Processor with RS 485 Bus









DIN Rail Automation Processor Specifications

I/O 1 – 4

(1) 5-pin 3.81mm detachable terminal block comprising (4) digital input/output ports (referenced to GND);

Digital Input

Rated for 0-24 Volts DC, input impedance 20k ohms, logic threshold 1.25 Volts DC

Digital Output

250 mA sink from maximum 24 Volts DC, catch diodes for use with “real world” loads

COM 1 – 5

(5) 4-pin 3.81mm detachable terminal blocks Bidirectional RS-485 ports; Up to 115.2k baud

LAN

(1) 8-wire RJ45 with 2 LED indicators; 10BaseT Ethernet port; Green LED indicates link status;
Yellow LED indicates Ethernet activity.

BUTTON 1 – 6

(8) miniature pushbuttons for local control of devices

Information Display

128*64 LCD display, display system configuration and status information

PWR

(1)Green LED, illuminates when DC power is a applied to the NET port

NET

(1)Yellow LED, Indicates communication with an external control processor



DIN Rail Automation Processor Features



1. The DIN-CP1 is a intelligent control processor designed for intelligent lighting and automation applications. DIN rail mounting enables modular installation alongside OKYSTAR DIN rail lighting and automation control modules and other third-party DIN rail mountable devices.
2. The DIN-CP1 includes LCD display screen,button,which is able to Inquiry the system power state,system configuration parameters.
3. The DIN-CP1 includes 1pcs built-In ethernet network communication port, 4pcs IO control ports, 5pcs RS-485 BUS communication ports.
4. Ethernet network communication ports support 8pcs TCP and 8pcs UDP ports connection to control third-party devices . Each TCP/UDP connection can be configured as sever or client way.
5. Ethernet network communication port provides an upward connection TCP/UDP port, which can connect the computer , central control system, compatible with AMX, Crestron, C4 and all third-party control system network connection.
6. The DIN-CP1 has 5-way RS-485 BUS communication port, supports DC-Net BUS protocol, DMX protocol, ModBUS RTU protocol, ModBUS Ascii protocol, third-party protocols and other control protocols; it supports multiple types of control panels, sensor access to control third-party equipment.
7. The IO control port supports rising edge, falling edge, high level or low level mode trigger.
8. The DIN-CP1 built-in calendar clock, supports 10 groups scheduled task operations.



DIN Rail Automation Processor Application

RS 485 Automation Dimming Processor Eco - Friendly For Smart Lighting Controls 0


DIN Rail DALI System Advantages


1. Cost and time advantages in planning, installation, commissioning and reprogramming
2. Improves comfort.
3. High flexibility, extense function at any time

4. DIN rail components and surface mounted devices

5. Input and output combinated various devices.
6. All loads in the room (lights, blinds, heating, etc.) can be controlled using a central device




RS 485 Automation Dimming Processor Eco - Friendly For Smart Lighting Controls 1

FAQ
1. What is intelligent lightincontrol
g system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.

2. What is the advantage compare with the traditional lighting control?

Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient


3. What Okystar can supply for you?

Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
