| Product Name: | Automation Processor | Input Voltage: | DC24V |
|---|---|---|---|
| Working Humidity: | 10% To 90% RH (non-condensing) | Leigh: | 143mm |
| CPU: | 32-bit ARM Microprocessor | Weight: | 250g |
| High Light: | led light control module,interior lamp control module |
||
Description of Automation Processor:

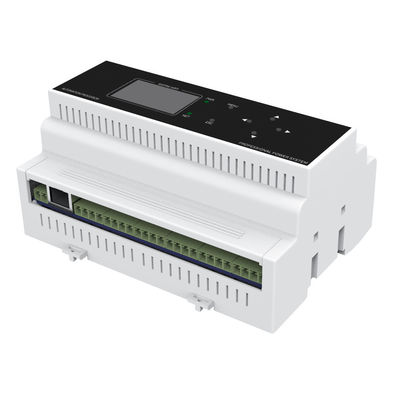

>The DIN-CP1 is a intelligent control processor designed for intelligent lighting and automation applications. DIN rail mounting enables modular installation alongside OKYSTAR DIN rail lighting and automation control modules and other third-party DIN rail mountable devices
>The DIN-CP1 includes LCD display screen,button,which is able to Inquiry the system power state,system configuration parameters.
Specifications of Automation Processor:
| Input voltage | DC24V |
| Temperature | 32° to 104°F (0° to 40°C) |
| DC-NET Power Usage | 2 Watts (0.08 Amps @ 24 Volts DC) when line power is not available |
| LAN | (1) 8-wire RJ45 with 2 LED indicators; 10BaseT Ethernet port; Green LED indicates link status;Yellow LED indicates Ethernet activity |
| Information Display | 128*64 LCD display, display system configuration and status information |
Automation Processor Quick Details:
1.Ethernet network communication ports support 8pcs TCP and 8pcs UDP ports connection to control third-party devices . Each TCP/UDP connection can be configured as sever or client way.
2.The DIN-CP1 supports up to 128 devices connection, management and controlling. The device types include DC-Net BUS devices, DMX devices, ModBUS Input/Output devices, and other third-party Input/Output devices.
3.Use html web configuration programming method, the programming interface is stored in the host. You can make configuration programming to control the host by login in PC web browser. The entire programming process is simple and intuitive, which breaks the traditional written in the programming software programming language / graphical programming way, minimizes the programming capabilities of device use RS and ensures the flexibility of device applications.
Automation Processor Specifications
| Information Display | 128*64 LCD display, display system configuration and status information |
| NET | (1) Yellow LED, Indicates communication with an external control processor |
| BUTTON 1 – 6 | (8) miniature pushbuttons for local control of devices |
FAQ:
1. What is intelligent lighting control system?
A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.
2. What is the advantage compare with the traditional lighting control?
Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient
3. What Okystar can supply for you?
Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
