Product Details:
Payment & Shipping Terms:
|
| Keyword1: | 1/2/3/4 Gangs WIFI Touch Switch | Keyword2: | Touch Wifi Switch |
|---|---|---|---|
| Color: | White,Black,Gold | Size: | 86mm*86mm*35mm |
| Max. Voltage: | 110V~250V | Product Name: | Smart Wifi Wall Switch |
| Warranty: | 5 Years | Type: | Touch Wall Light Switch |
| High Light: | Touch Screen Smart Switch Panel,4 Gangs Smart Switch Panel,4 Gangs smart light switch panel |
||

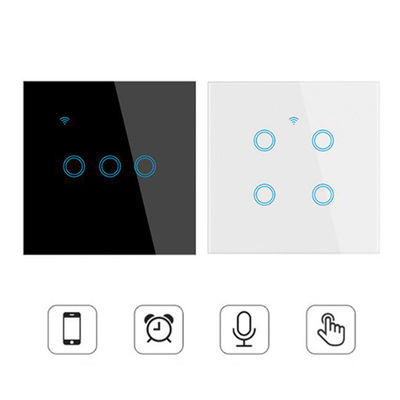

UK EU 4 Gangs Touch Screen Smart Switch Panel Wireless Light Switch
OKY-101BW-1
| Input voltage | 100-240VAC 50/60Hz |
| Networking | wifi |
| Power rating | 6000W |
| Standby power | 0.5W |
| Size | 86 * 86 * 35mm |
| Life | (100000 times) |
| Housing Color | White/black/gold |
| Operation Temperature | -20℃～+50℃ |
| Plastic material | ABS |
| Fire-protection rating | 94-V0 |
| GW | 218g |
OKY-101BW-2
| Input voltage | 100-240VAC 50/60Hz |
| Networking | wifi |
| Power rating | 2*600W |
| Standby power | 0.5W |
| Size | 118 * 72 * 39mm |
| Life | (100000 times) |
| Housing Color | White/black/gold |
| Operation Temperature | -20℃～+50℃ |
| Plastic material | ABS |
| Fire-protection rating | 94-V0 |
| GW | 255g |
OKY-101BW-3
| Input voltage | 100-240VAC 50/60Hz |
| Networking | wifi |
| Power rating | 3*600W |
| Standby power | 0.5W |
| Size | 86 * 86 * 35mm |
| Life | (100000 times) |
| Housing Color | White/black/gold |
| Operation Temperature | -20℃～+50℃ |
| Plastic material | ABS |
| Fire-protection rating | 94-V0 |
| GW | 218g |
OKY-101BW-4
| Input voltage | 100-240VAC 50/60Hz |
| Networking | wifi |
| Power rating | 4*600W |
| Standby power | 0.5W |
| Size | 118 * 72 * 39mm |
| Life | (100000 times) |
| Housing Color | White/black/gold |
| Operation Temperature | -20℃～+50℃ |
| Plastic material | ABS |
| Fire-protection rating | 94-V0 |
| GW | 255g |
What is the principle of wifi switch?
The principle of the wireless wifi smart switch: embed the ordinary switch and socket into the serial wifi module to realize the conversion of serial data to wireless data. Plus a simple, easy-to-understand APP operation interface. Enjoy more convenient smart home. Even the appearance of the original switch or socket can be improved, such as changing the original mechanical switch to touch-screen operation.
The serial port wifi module is based on the characteristics of a universal serial interface, conforms to the IEEE802.11 protocol stack network standard, and has a built-in TCP/IP protocol stack, which can realize any transparent conversion between the user serial port, Ethernet, and wireless network (WIFI) interfaces. Make traditional serial devices better join the wireless network.
Advantage
1. Serial port to WIFI module, serial port to Ethernet module, Ethernet to WIFI multi-function WIFI module, serial server module, easy networking of serial devices, fully transparent two-way data transmission, ensuring maximum ease of use and compatibility.
2. The module integrates a 10/100M adaptive Ethernet interface, and the highest baud rate of serial communication is up to 230.4Kbps.
3. The reliable system core is suitable for security and long-term running system applications.
4. The world's top network chip supplier Ralink's plan is adopted, and the raw materials are all from TDK//Murata and other big-name manufacturers, laying a stable and reliable foundation.
5. Working temperature: industrial grade: -25~75°C.
6. Pass CE and FCC certification, support IEEE 802.11 b/g/n, and support transparent protocol data transmission mode.
7. Built-in 360M MIPS CPU, 16M RAM, 4M FLASH, wireless baseband and RF front-end, and various peripheral buses.
