|Usage:||RS-485 Extention||Output:||60 Watts|
|Extention Ports:||4||Power Input:||24V DC|
|Red Indicators:||Data Sending||Temperature:||32° To 104°F (0° To 40°C)|
|Yellow Indicators:||Data Receive||Humidity:||10% To 90% RH (non-condensing)|
daytime running light control module,
interior lamp control module

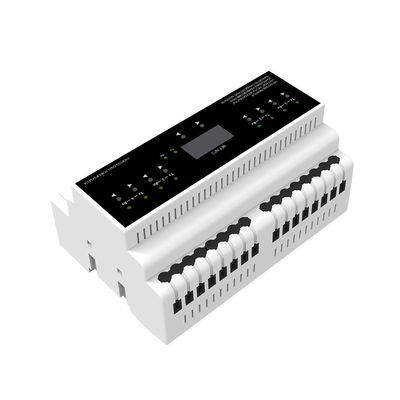

24V DC Lighting Control Extention Hub With RS-485 Interface For Smart Home
(2) 4-pin 3.81mm detachable terminal blocks, paralleled;
Connects to Master NET port of DIN-CP1 or other control system
|(1) 3-pin 3.81mm detachable terminal blocks; Powered by DC NET or external Power Supply.|
|Maximum Load||60 Watts (2.5 Amps @ 24 Volts DC)|
|NET A – D||(4) 4-pin 3.81mm detachable terminal block for Port Extention.|
|NET INFO||(3) 7-Segment green LED digits and (2) miniature pushbuttons for setting NET HOST Port Baud; digits also display Data length or Other information|
|NET HOST, Tx||(1 Red) Indicates DC-NET bus Data Send activity at either NET HOST port|
|NET HOST, Rx||(1 Yellow) Indicates DC-NET bus Data Receive activity at either NET HOST port|
|NET A – D, Tx||(4 Red) Indicate DC-NET bus Data Send activity at NET ports of corresponding hub segment|
|NET A – D, Rx||(4 Yellow) Indicate DC-NET bus Data Receive activity at NET ports of corresponding hub segment|
|NET A-D Pushbuttons||(8) miniature pushbuttons for Baud Setting of corresponding hub segment Power Requirements|
DIN Rail Installation of DIN-Hub
Different packing at optional:
1. Retailing Packing:
Neutral Carton Package
2. Bulking Packing:
Carton Package-Can save packing cost
Anti-static bag--Can protect electronic components from potential electrostatic hazards
3. Customized Packing
Can design and pack according to your requirement,such as colorful box,blister packing,sealed packing with your company information, bar code,ect. ( Discuss extral)
1. What is intelligent lighting control system?
A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.
2. What is the advantage compare with the traditional lighting control?
Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient
3. What Okystar can supply for you?
Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
