CE Lighting Control Module 0-10V Controller 120 220 240 Volt 50/60 Hz Applications

CE Lighting Control Module 0-10V Controller 120 220 240 Volt 50/60 Hz Applications
CE Lighting Control Module 0-10V Controller 120 220 240 Volt 50/60 Hz Applications
video play

Large Image :  CE Lighting Control Module 0-10V Controller 120 220 240 Volt 50/60 Hz Applications

Product Details:
Place of Origin: China
Brand Name: OKYSTAR
Certification: CE
Model Number: DIN-FLV4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $40-60/pcs
Packaging Details: 1pcs/box, withing 14kg for DIN Rail Smart Lighting Control System
Delivery Time: 2-7 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 2000pcs/month
Detailed Product Description
Product Name: DIN Rail 0-10V Dimmer Module Dimmer Channels: 4
Maximum Per Channel: 5 Amps @ 120 To 240 Volts AC, 50/60 Hz Feature: Smart Lighting Control
Warranty: 1 Years Application: Home/building Automation Lighting Control System
Voltage Control Range: 0 To 10 Volts DC
High Light:

daytime running light control module

,

interior lamp control module

0-10V Controller Supports 120 and 220 to 240 Volt, 50/60 Hz applications







DIN Rail 0-10V Controller Features


> 4 channels of 0-10 Volt dimming control
> Supports 120 and 220 to 240 Volt, 50/60 Hz applications
> Allows switching of lighting and exhaust fans
> Includes an override input
> Communicates using DC-NET
> Sets up via the front panel or through software
> Offers programmable functionality via DIN-CP1

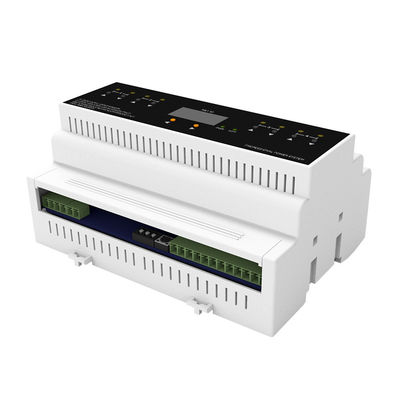

The DIN-FLV4 is a 4-channel lighting control module designed to dim 0-10 Volt drivers and ballasts. A single model supports both 120 and 220 to 240 Volt applications. The DIN-FLV4 may also be used for switching of non-dimmable lighting loads up to 5 amps[1] and 1/2 HP motors.



DIN Rail 0-10V Controller Specifications



Dimmer Channels
4

Maximum Per Channel

5 Amps @ 120 to 240 Volts AC, 50/60 Hz

Dim Load Types

0-10 Volt fluorescent ballast or LED driver (4-wire); Maximum of 40 dimmable ballasts/drivers

Switch Load Types

Incandescent, magnetic low-voltage, electronic low-voltage, neon/cold cathode, fluorescent, motors
Temperature
32° to 104°F (0° to 40°C)
Humidity
10% to 90% RH (non-condensing)




DIN Rail 0-10V Controller Connections



1.  OUTPUT 1 – 4:  (2) 4-pin 3.81mm detachable terminal blocks comprising (4) isolated dimming control outputs
2.  Voltage Control Range: 0 to 10 Volts DC
3.  Maximum Sink Current: 100mA per channel;
4.  Connector:  (4) sets of (2) captive screw terminals; Isolated Class 1 SPST relay switchcircuits 1 – 4;
5.  Relay Rating: 5 Amps maximum per channel
6.  Maximum Wire Size: 12 AWG (2.5 mm²)


DIN Rail 0-10V Controller Application

CE Lighting Control Module 0-10V Controller 120 220 240 Volt 50/60 Hz Applications 0



Automation Lighting Control System Applied in: stadium, school, hospital, airport, metro, church, office, commercial building, parking lot/car park/parking area, outdoor spaces, foyer, lobby, elevator hall, public walkway, bathroom, underground garage, meeting room, villa, home lighting, plazas, shopping malls, public building, industrial plants and factories, etc





Different packing at optional:


1. Retailing Packing:
Neutral Carton Package

2. Bulking Packing:
Carton Package-Can save packing cost
Anti-static bag--Can protect electronic components from potential electrostatic hazards

3. Customized Packing
Can design and pack according to your requirement,such as colorful box,blister
packing,sealed packing with your company information, bar code,ect. ( Discuss extral)




FAQ
1. What is intelligent lightincontrol
g system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.

2. What is the advantage compare with the traditional lighting control?

Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient


3. What Okystar can supply for you?

Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
