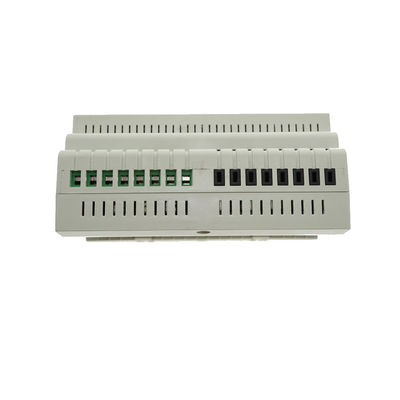

Smart Home Lighting Control Module 4 Channels Of 0-10 Volt Dimming Controller

large.img.alt
small.img.alt

Large Image :  Smart Home Lighting Control Module 4 Channels Of 0-10 Volt Dimming Controller

Product Details:
Place of Origin: China
Brand Name: Okystar
Model Number: DIN-FLV4
Payment & Shipping Terms:
Packaging Details: carton package
Delivery Time: 3-5 work days
Supply Ability: ≥1000pcs per day
Detailed Product Description
Dimmer Channels: 4 Maximum Per Channel: 5 Amps @ 120 To 240 Volts AC, 50/60 Hz
Temperature: 32° To 104°F (0° To 40°C) Humidity: 10% To 90% RH (non-condensing)
DC-NET Power Usage: 2.5 Watts (0.1 Amps) @ 24 Volts DC Size: Height: 98 Mm Width: 143 Mm Depth: 68 Mm
Weight: 350 G
High Light:

daytime running light control module

,

interior lamp control module

Smart Home Lighting Control Module of 4 Channels of 0-10 Volt Dimming Controller



Description

The DIN-FLV4 is a 4-channel lighting control module designed to dim 0-10 Volt drivers and ballasts. A single model supports both 120 and 220 to 240 Volt applications. The DIN-FLV4 may also be used for switching of non-dim_x0002_mable lighting loads up to 5 amps[1] and 1/2 HP motors.



> 4 channels of 0-10 Volt dimming control
> Supports 120 and 220 to 240 Volt, 50/60 Hz applications
> Allows switching of lighting and exhaust fans
> Includes an override input
> Communicates using DC-NET
> Sets up via the front panel or through software
> Offers programmable functionality via DIN-CP1









OUTPUT 1 – 4
(2) 4-pin 3.81mm detachable terminal,blocks comprising (4) isolated dimming control outputs



Voltage Control Range
0 to 10 Volts DC



Maximum Sink Current
100mA per channel



connector
(4) sets of (2) captive screw terminals; Isolated Class 1 SPST relay switch
circuits 1 – 4



Relay Rating



5 Amps maximum per channel



Maximum Wire Size



12 AWG (2.5 mm²)



NET



(2) 4-pin 3.81mm detachable terminal Blocks, paralleled; DC-NET slave port





Enclosure
Light gray polycarbonate housing with polycarbonate label overlay, UL94 V-0 rated, 35mm DIN EN 60715 rail mount, DIN 43880 form factor for
enclosures with 45mm front panel cutout, occupies 8 DIN module spaces(143mm).

Dim Load Types
0-10 Volt fluorescent ballast or LED driver (4-wire); Maximum of 40 dimmable ballasts/drivers




Switch Load Types[1]
Incandescent, magnetic low-voltage, electronic low-voltage, neon/cold cathode, fluorescent, motors




Smart Home Lighting Control Module 4 Channels Of 0-10 Volt Dimming Controller 0




Different packing at optional:
1. Retailing Packing:
Neutral Carton Package

2. Bulking Packing:
Carton Package-Can save packing cost
Anti-static bag--Can protect electronic components from potential electrostatic
hazards

3. Customized Packing
Can design and pack according to your requirement,such as colorful box,blister
packing,sealed packing with your company information, bar code,ect. ( Discuss
extral)





FAQ:



1. What is intelligent lighting control system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.



2. What is the advantage compare with the traditional lighting control?



Improve energy efficiency

Reduce maintenance cost

Easy operation and more convenient



3. What Okystar can supply for you?



Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
