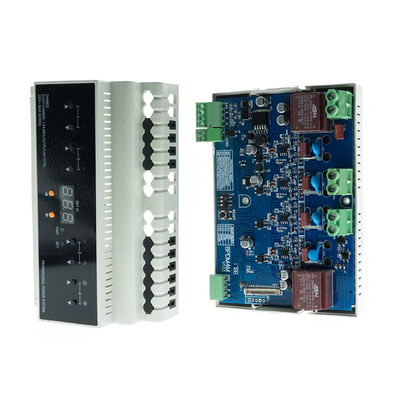

Durable Interior Lamp Control Module 4 Channel 143*98*68mm Size For Dimming

Durable Interior Lamp Control Module 4 Channel 143*98*68mm Size For Dimming
Durable Interior Lamp Control Module 4 Channel 143*98*68mm Size For Dimming Durable Interior Lamp Control Module 4 Channel 143*98*68mm Size For Dimming Durable Interior Lamp Control Module 4 Channel 143*98*68mm Size For Dimming Durable Interior Lamp Control Module 4 Channel 143*98*68mm Size For Dimming Durable Interior Lamp Control Module 4 Channel 143*98*68mm Size For Dimming

Large Image :  Durable Interior Lamp Control Module 4 Channel 143*98*68mm Size For Dimming

Product Details:
Place of Origin: CHINA
Brand Name: Okystar
Model Number: DIN-DM4
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $118, 1-10pcs; $112.10, 11-100pcs; $108.56, 100-300pcs; $103.84, 300pcs-500pcs.
Packaging Details: carton package
Delivery Time: 3-5work days
Payment Terms: T/T, Western Union
Supply Ability: ≥1000pcs per day.
Detailed Product Description
Dimmer Channels: 4 Maximum Per Channel: 1.5 Amps @ 120 To 240 Volts AC, 50/60 Hz;
Input VoltaInput Voltage: 120 To 240 Volts AC, 50/60 Hzge:120 To 240 Volts AC, 50/60 Hz Size: 143*98*68mm
Temperature: 32° To 104°F (0° To 40°C) Weight: 450g
High Light:

led light control module

,

interior lamp control module

4-Channel Universal Lighting Control ModuleSupports Dimming Of Both Forward And Reverse Phase



Description:

The DIN-DM4 is a 4-channel universal lighting control module Designed to support dimming of both forward and reverse phase type loads.

A single model supports 4-Way 1.5A Dimming, Each channel Can Control 330W Load Independently , 2channel Or More channel Combining Power Output At Optional, Maximum 6A (1300W) Combining Output.



Control & Indicators

NET ID
(3) 7-Segment green LED digits and (2) miniature pushbuttons for setting DC-NET ID; digits also display output levels
PWR
(1) Green LED, illuminates when DC power is applied to the NET port
NET
(1) Yellow LED, indicates communication with the control processor
RESET
(1) Recessed miniature pushbutton, resets internal processor
LOADS 1 – 4
(8) Red LEDs and (8) miniature pushbuttons for status indi-cation and local control of each channel



1 Built-in OCP (over current protection),when the actual load power of channel exceeds the rated power, the module automatically closes
the channel;
2 Over-temperature protection, when the module’ s temperature is over the maximum working temperature, it will shut off all the channel output automatically and recover the channel output till It drops below the maximum working temperature;
3 Emergency manual switch helps you test easily. Operating state indicator lamps help you check operating state clearly.







Durable Interior Lamp Control Module 4 Channel 143*98*68mm Size For Dimming 0





1 Emergency manual switch helps you test easily. Operating state indicator lamps help you check operating state clearly;
2 With 1-way Bus input port, 1 way Bus output port and 1 way forced switch port;
3 DC-NET ID number digital display is on the front panel of the  device . the ID number can be set via the panel keys.


Different packing at optional:
1. Retailing Packing:
Neutral Carton Package

2. Bulking Packing:
Carton Package-Can save packing cost
Anti-static bag--Can protect electronic components from potential electrostatic hazards

3. Customized Packing
Can design and pack according to your requirement,such as colorful box,blister packing,sealed packing with your company information, bar code,ect. ( Discuss extral)



1 The DIN-DM4 is a 4-channel universal lighting control module designed to support dimming of both forward and reverse phase type loads.
2 A single model supports 4-way 1.5A dimming, each channel can control 330W load independently , 2 or more channel combining power output at optional, maximum 6A (1300W) combining output.
3 Built-in OCP (over current protection),when the actual load power of channel exceeds the rated power, the module automatically closes the channel.



FAQ:



1. What is intelligent lighting control system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.



2. What is the advantage compare with the traditional lighting control?



Improve energy efficiency

Reduce maintenance cost

Easy operation and more convenient



3. What Okystar can supply for you?



Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
