Product Details:
Payment & Shipping Terms:
|
| Product Name: | DALI Master Controller | Input Voltage: | DC24V |
|---|---|---|---|
| DALI Power Output:: | 250Ma | Weight: | 300g |
| Operating Temperature: | 0-70℃ | Tip: | We Have Technicians Support, Free Consultant |
| High Light: | led lighting control panel,lamp control module |
||
DALI Dimming Gateway Fectures:
1.Support a DALI bus, most allow linking 64 DALI lighting equipment
2.Scan equipments, meet the requirement of automatic address assignment of DALI agreement and there are 3 ways to assign address.
3.Broadcast equipments, control group or single address
4.Provide third-party control commands and seamless integrated control with third-party control system
5.Built-in 220V AC power input port and 24V DC input port, which can be operated by any of the power supply modes
6.All the parameters of the parameters table of DALI agreement can be read or set.

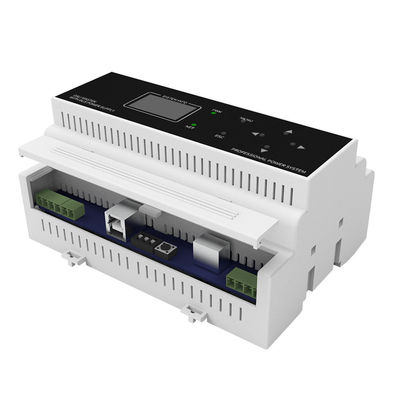

Description of DALI Dimming Gateway :
The innovative design of the DIN-DALI eliminates the need for the external power supplies required by other DALI controllers on the market. Power is delivered via DC-NET, creating a true single-wire installation. DC-NET are capable of powering all 64 DALI ballast controllers. If desired, an external power supply may be used in conjunction with the DIN-DALI An onboard switch allows the installer to choose the required mode during setup.
An override input is provided to allow an external contact closure to momentarily override the control system program and force each ballast into its defined “System Failure Level.” States can be set and saved locally from the front panel, or remotely via software.
One DALI Channels
The one-channel DALI outputs on the DIN-DALI makes controlling up to 64 individual DALI ballasts easy. The Digital Addressable Lighting Interface (DALI) is a protocol used for the control of lighting in buildings and is found on ballasts available from many manufacturers. Since it offers ballast-level control, lighting loads powered from the same feed can be controlled individually. DALI is a great choice for retrofit lighting systems because it does not require changes in line voltage wiring. Likewise, DALI provides ultimate flexibility by allowing reconfiguring of zones after a system is installed.
Specifications of DALI Dimming Gateway :
| Product Name | DALI Wireless Lighting System |
| NET | (2) 4-pin 3.81mm detachable terminal blocks, paralleled |
| Connect | USB RS-485 |
| Humidity | 10-90% |
| DALI Interface | (1) 2-pin 7.62mm terminal blocks Each channel controls a single DALI loop (up to 64 ballasts); |
DALI Dimming Gateway applications:
1. It can apply in residentials
2. It can apply in commercial
3. It can apply in hotels
4. It can apply in villas
FAQ:
1. What is intelligent lighting control system?
A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.
2. What is the advantage compare with the traditional lighting control?
Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient
3. What Okystar can supply for you?
Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
